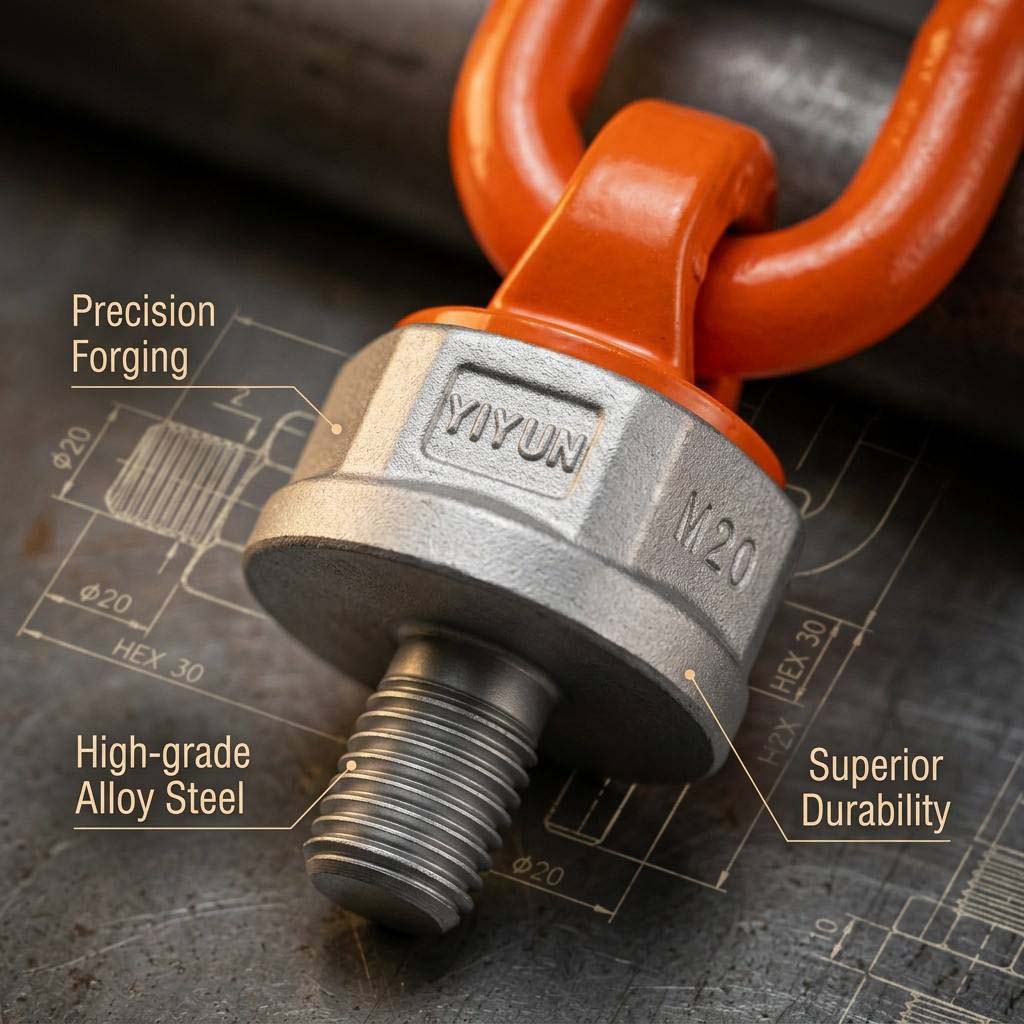

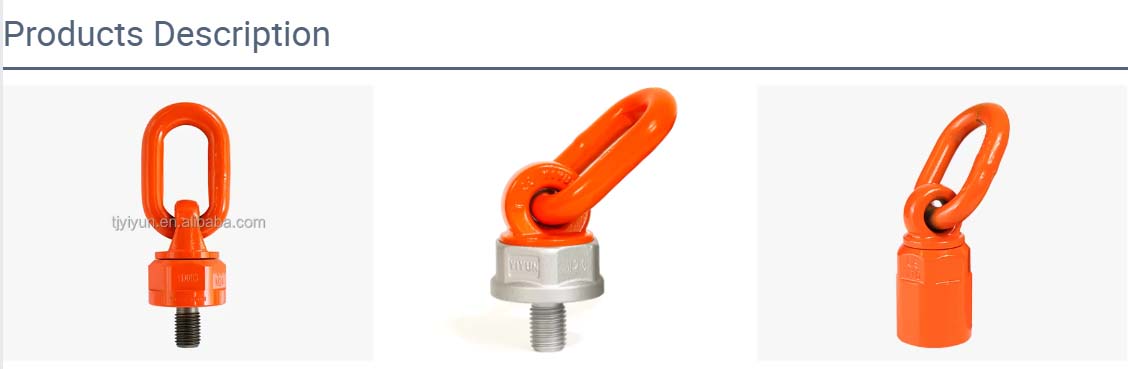

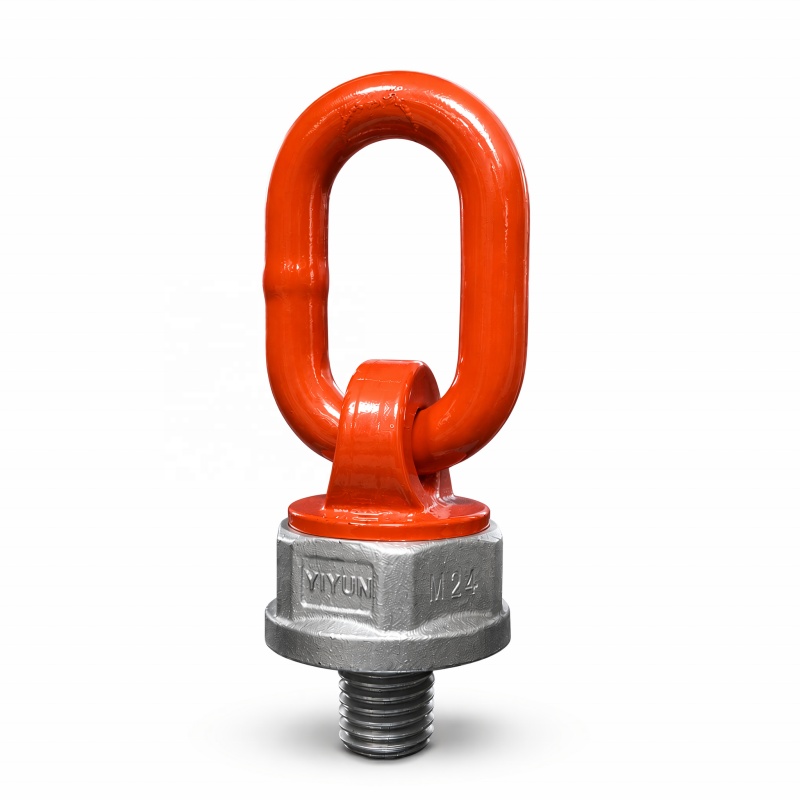

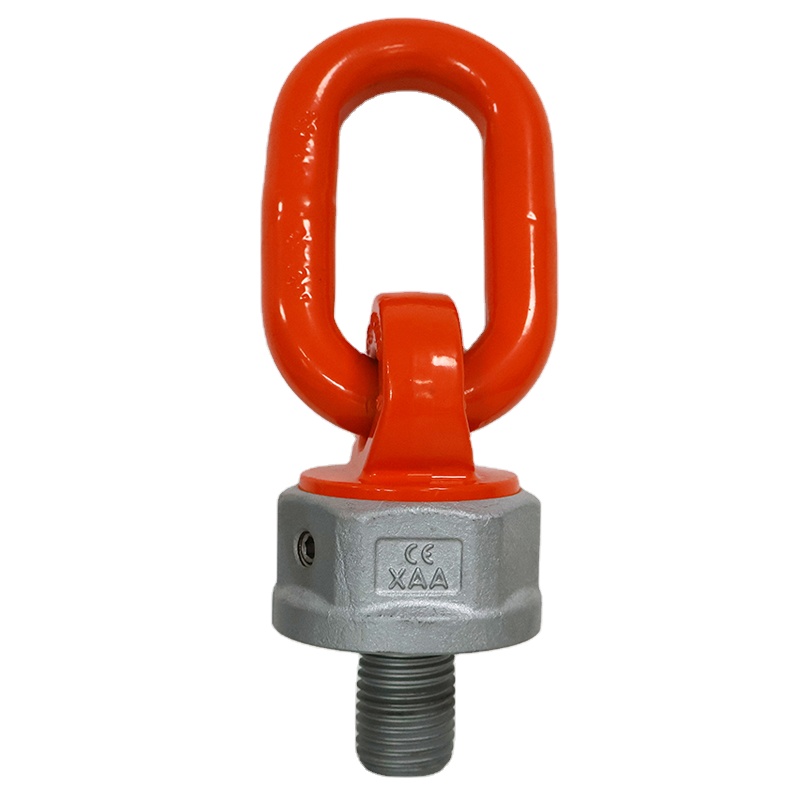

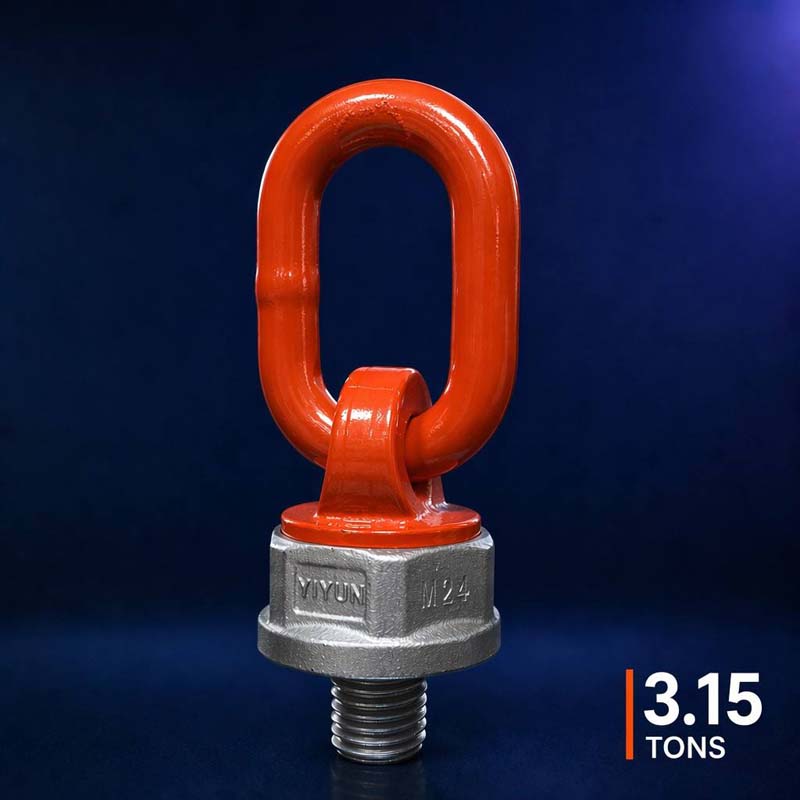

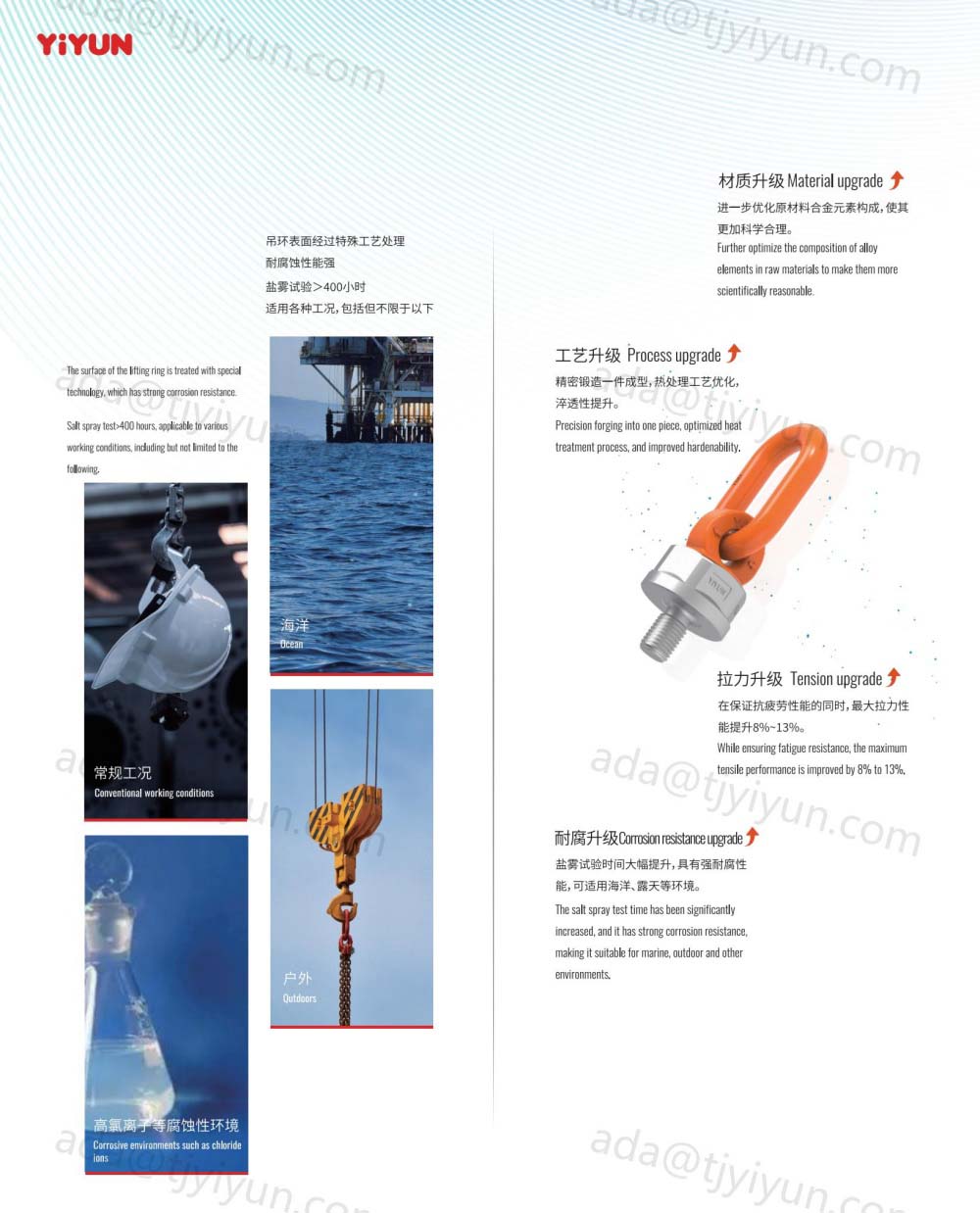

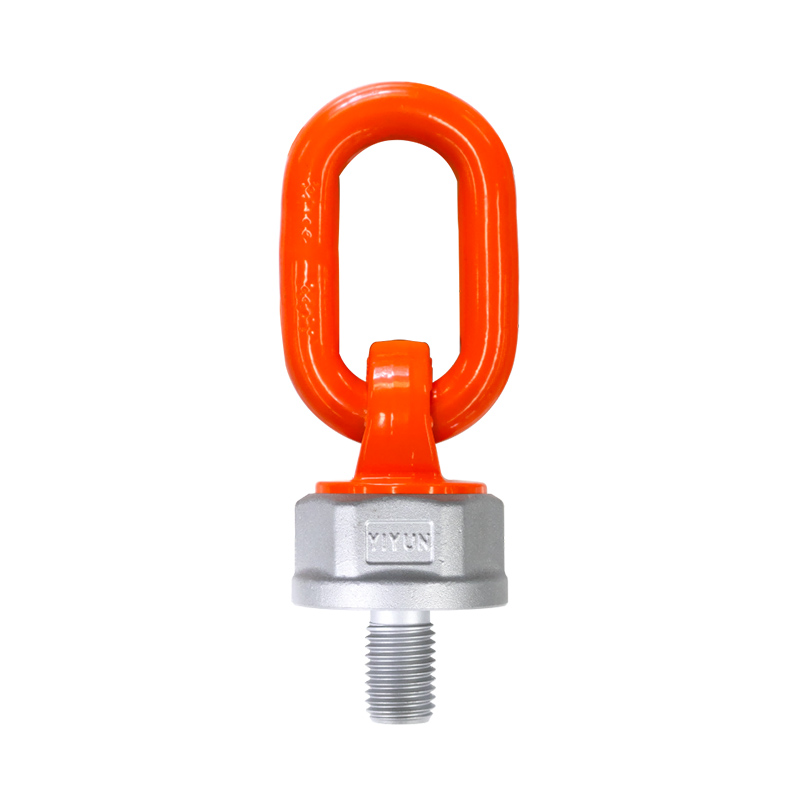

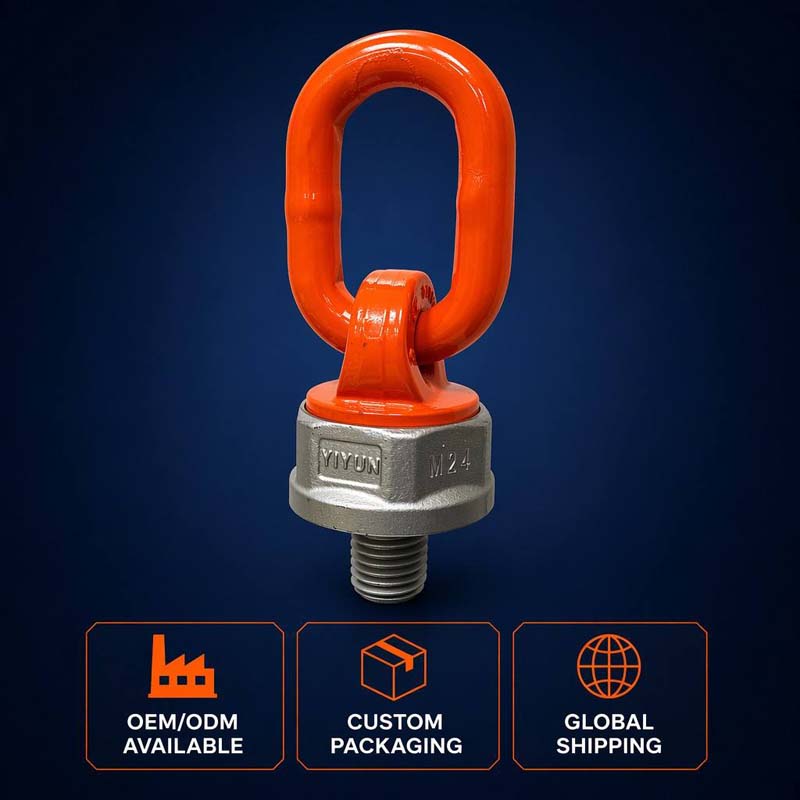

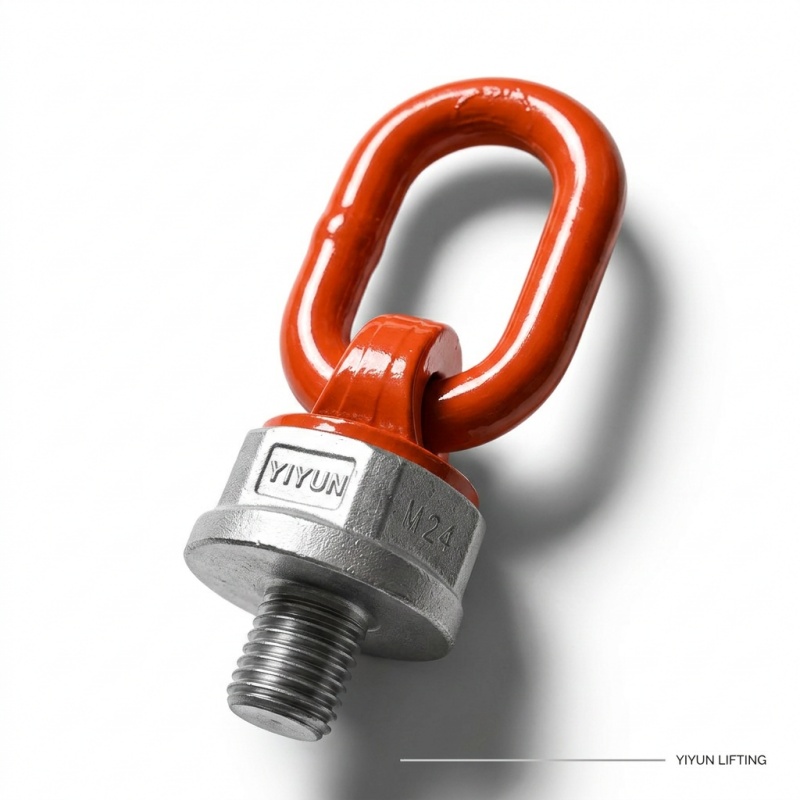

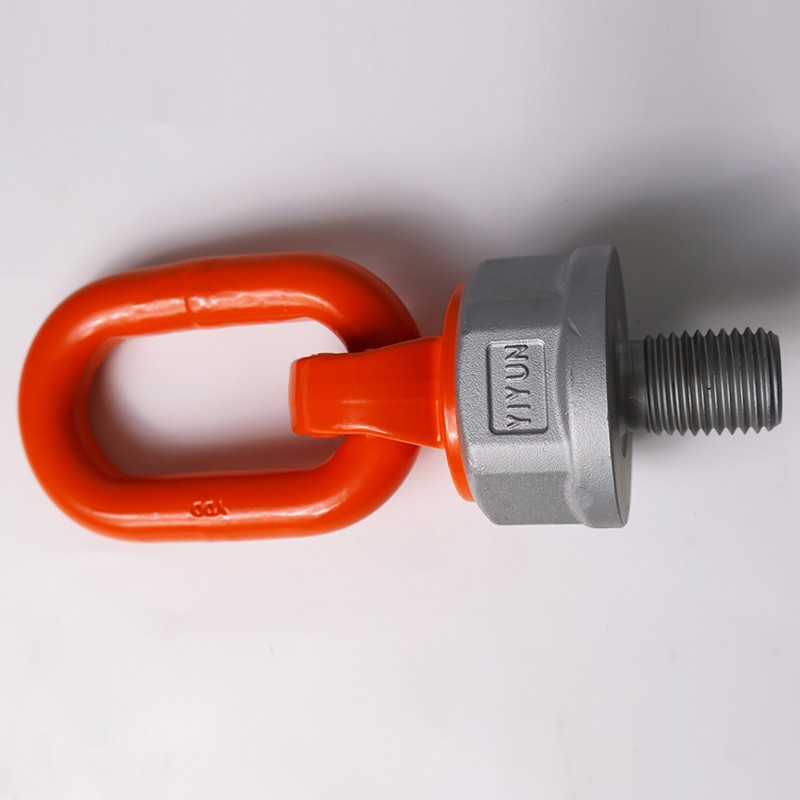

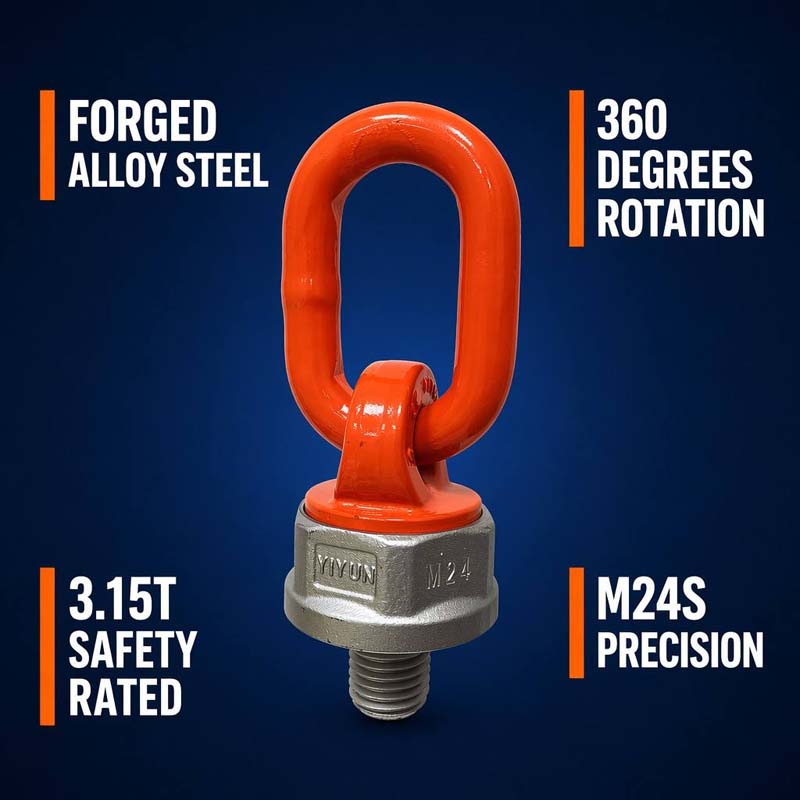

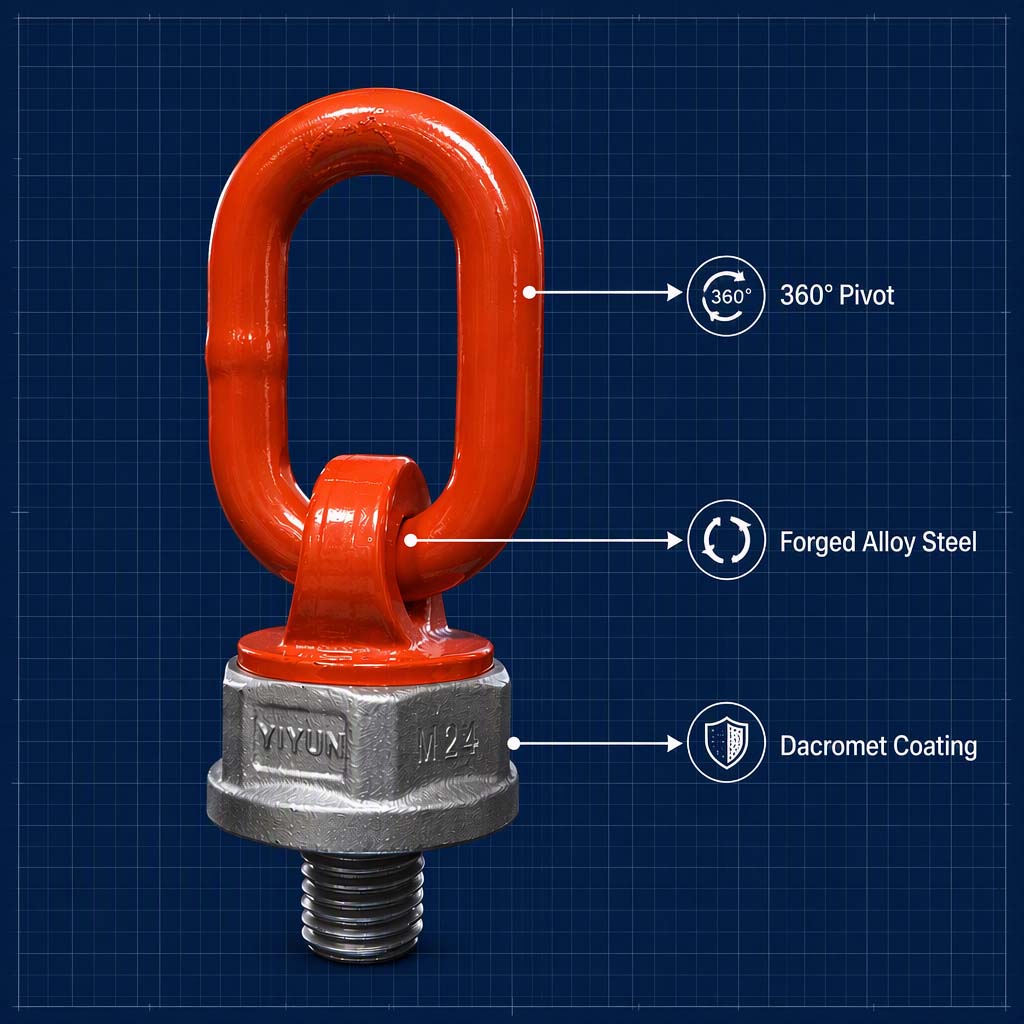

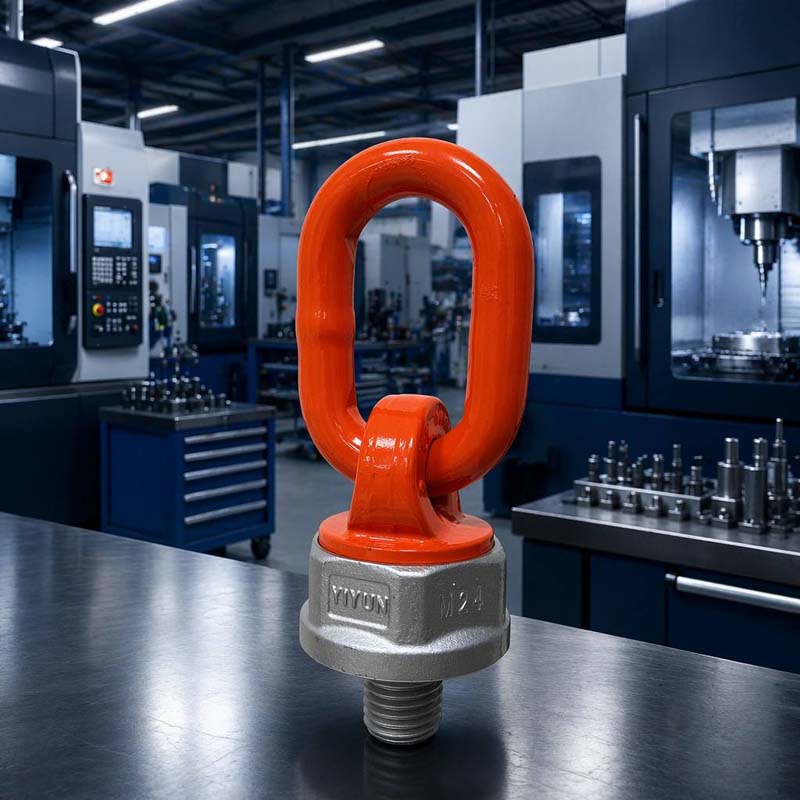

Lifting points are made of alloy steel precision forging, with a tensile strength greater than 1080Mpa after quenching and tempering. The surface of the lifting ring is electrostatic coating to improve its anti-corrosion ability.
After passing the inspection with a 6g go/no go gauge, it is suitable for precision threaded holes. Mark the WLL and thread diameter on the base of the lifting point.

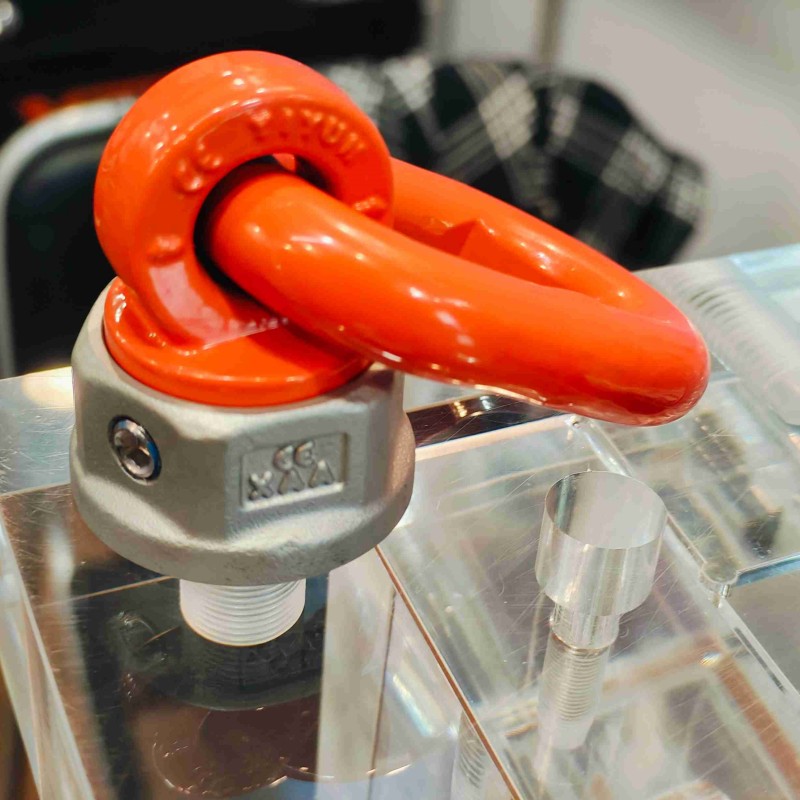

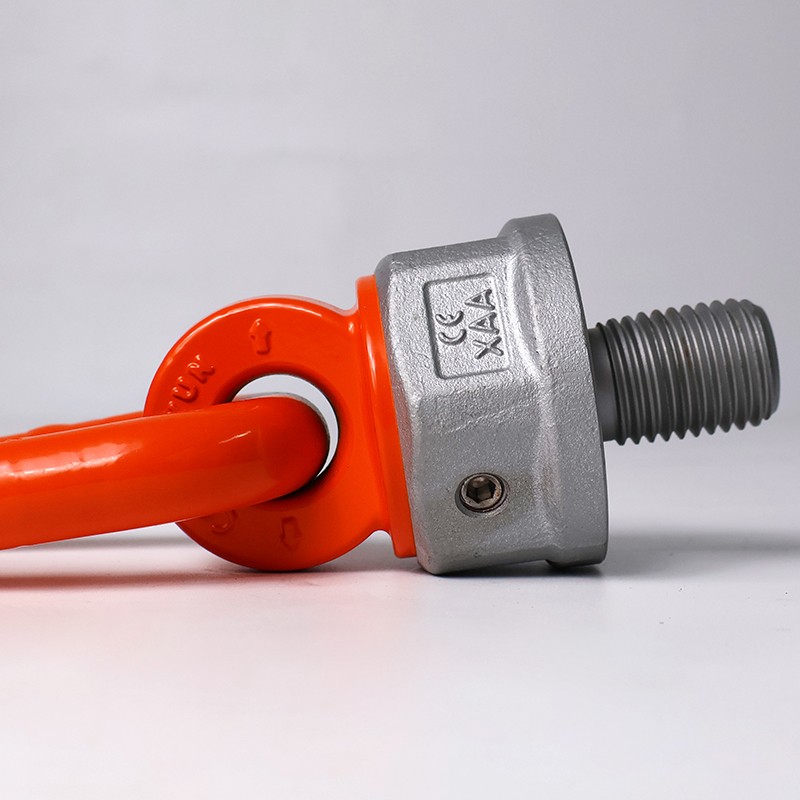

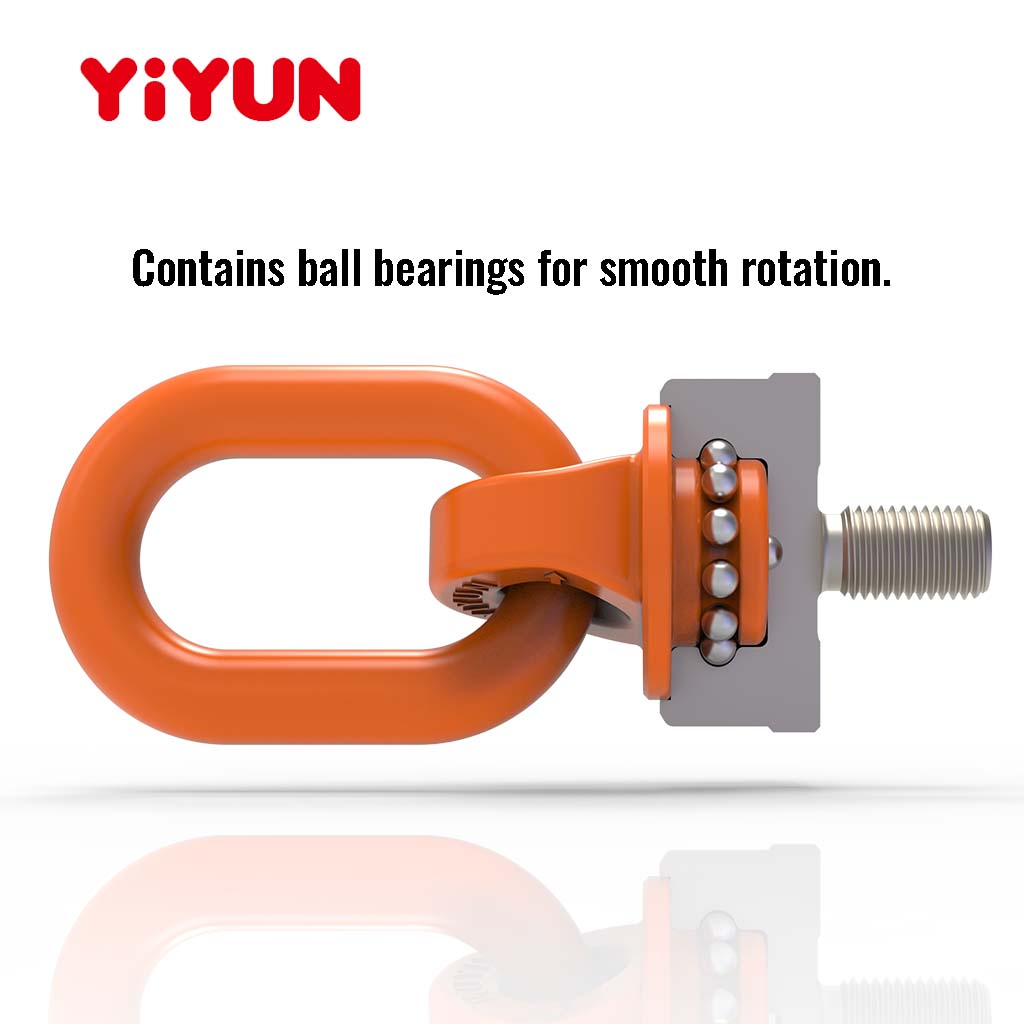

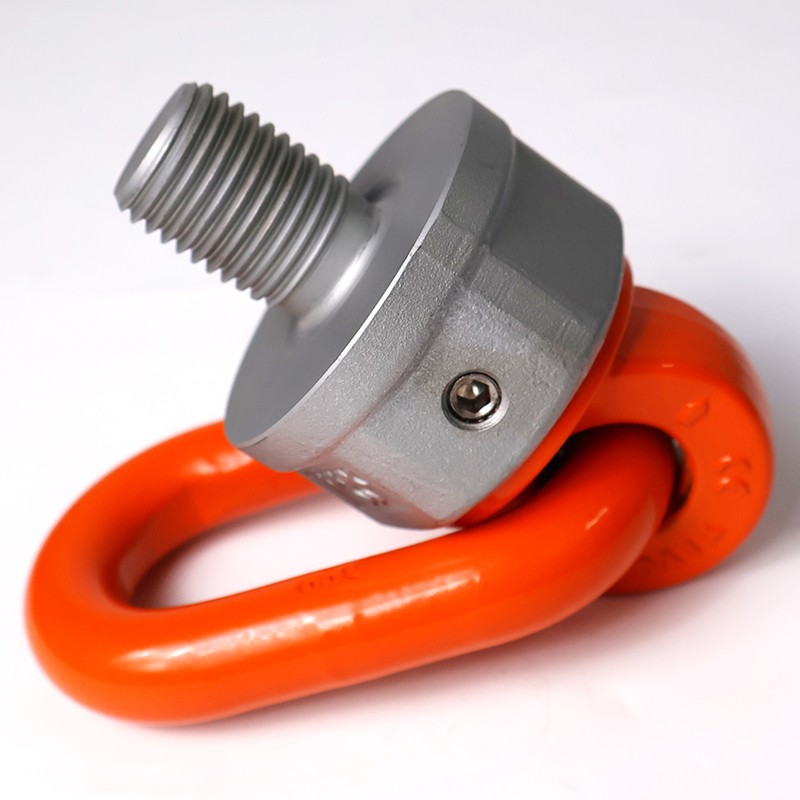

The internal space of the ring body is large and can be connected to various lifting tools and hooks. The ring body is equipped with a built-in positioning circlip device, making it more convenient to control any angle. The outer hexagonal+inner hexagonal design is convenient and fast for installation.

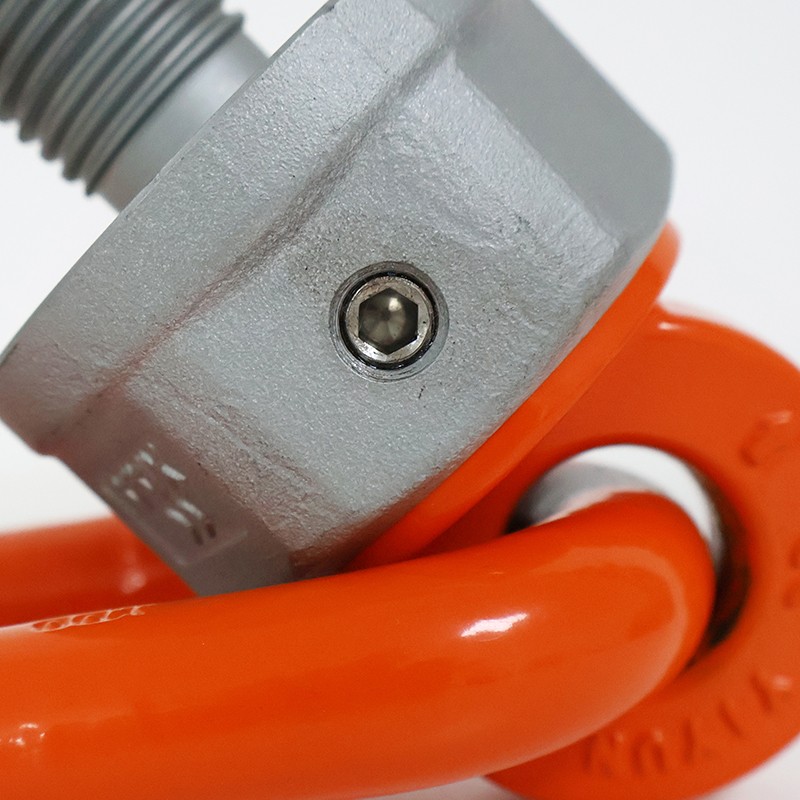

Equipped with a locking wrench, it is easy to install after locking, and the lifting ring can rotate after loosening.

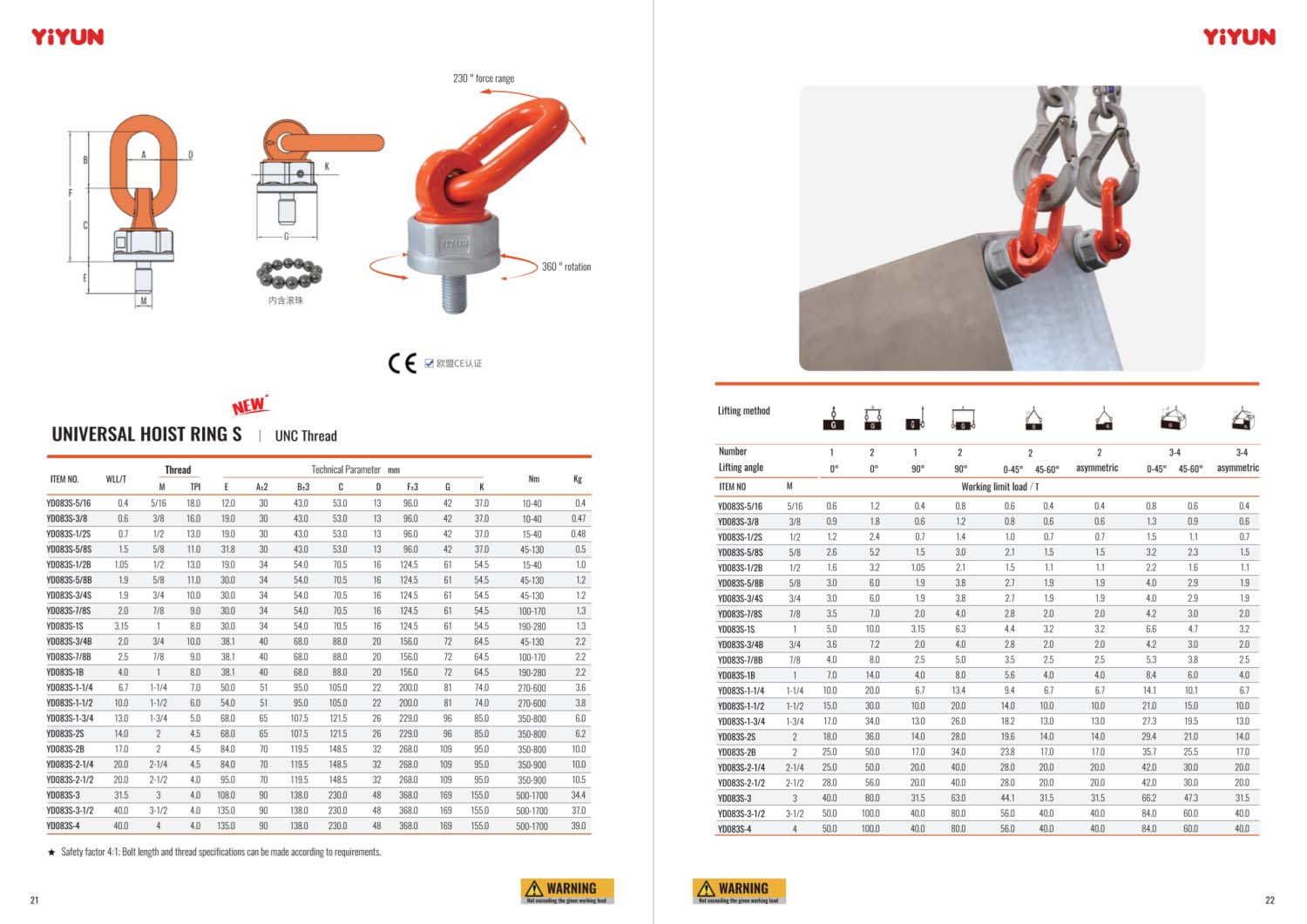

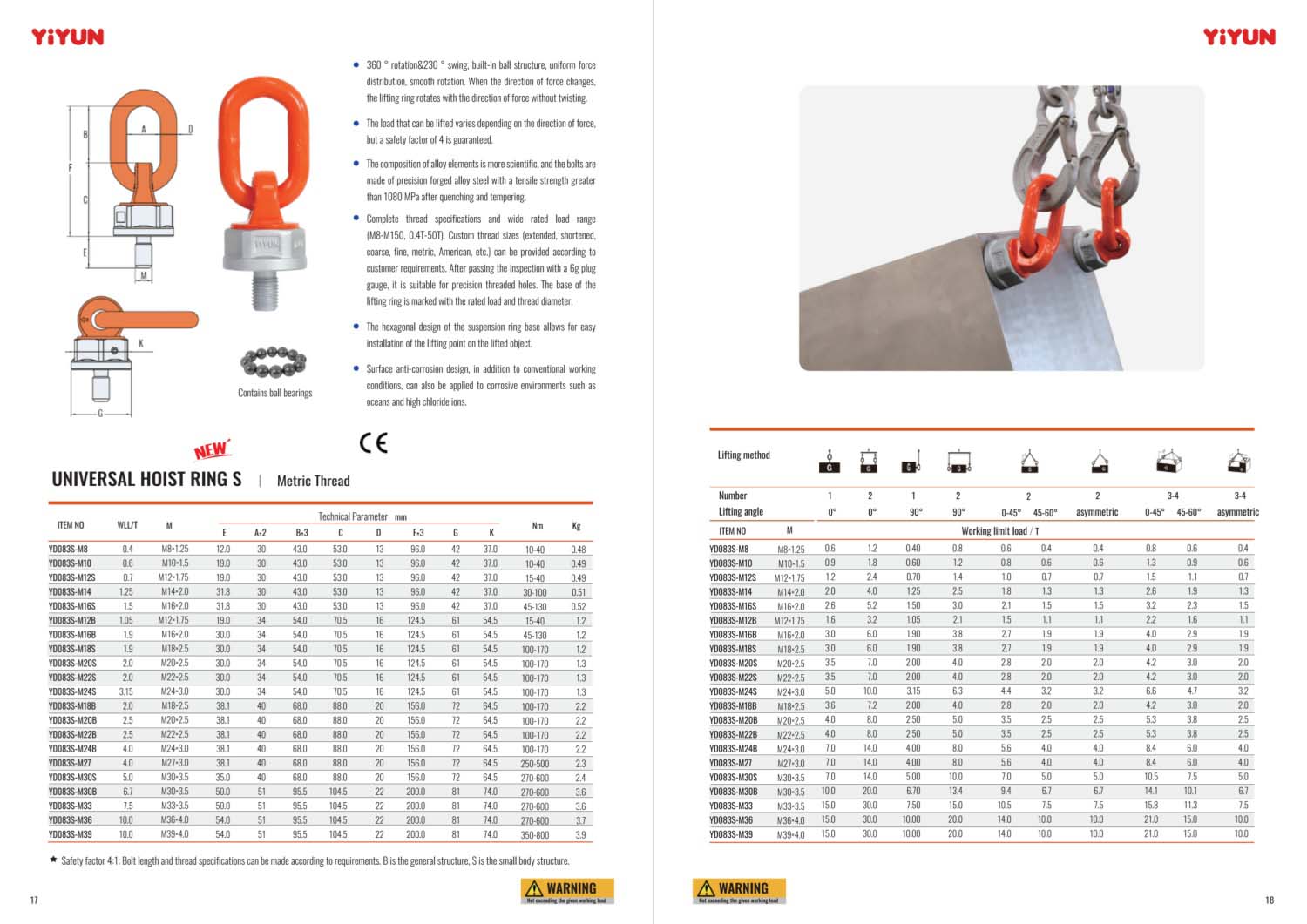

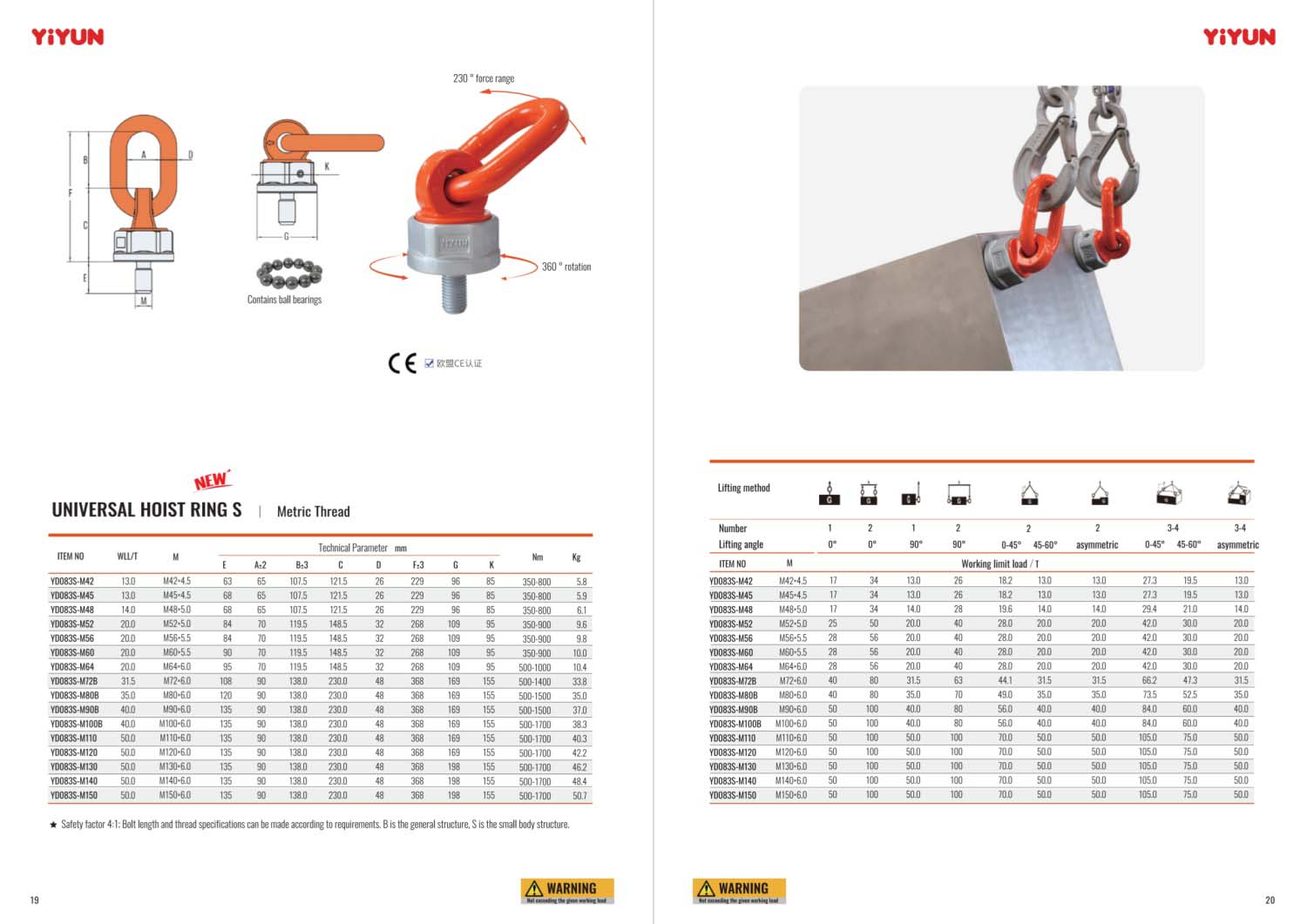

Specification:

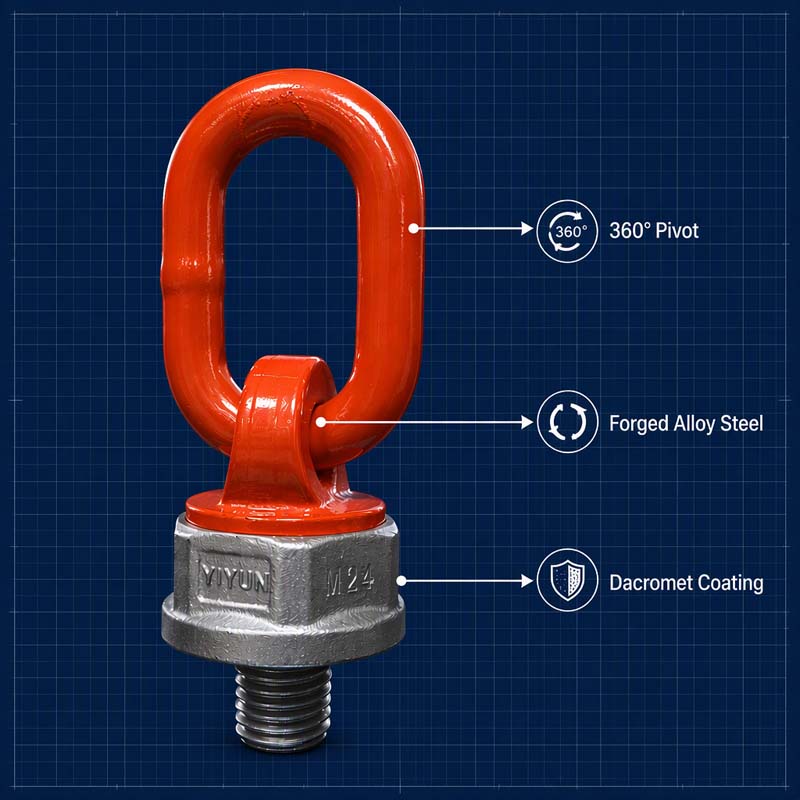

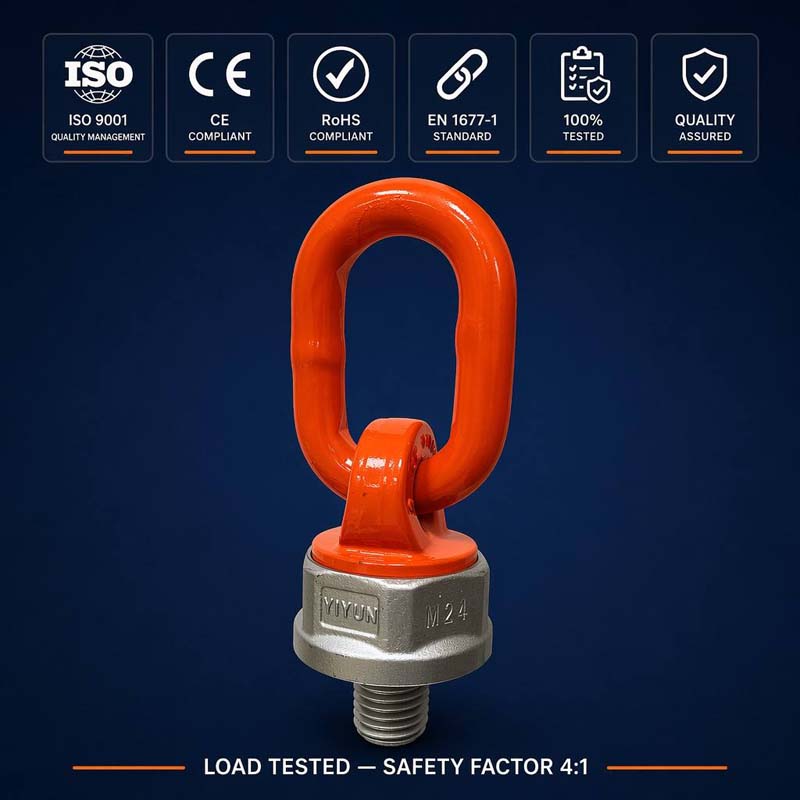

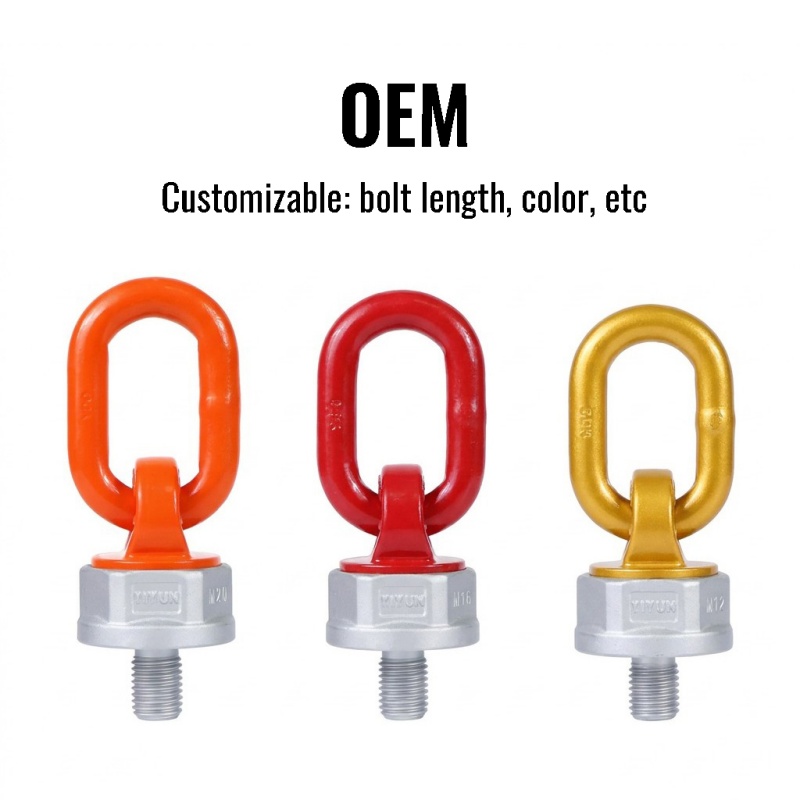

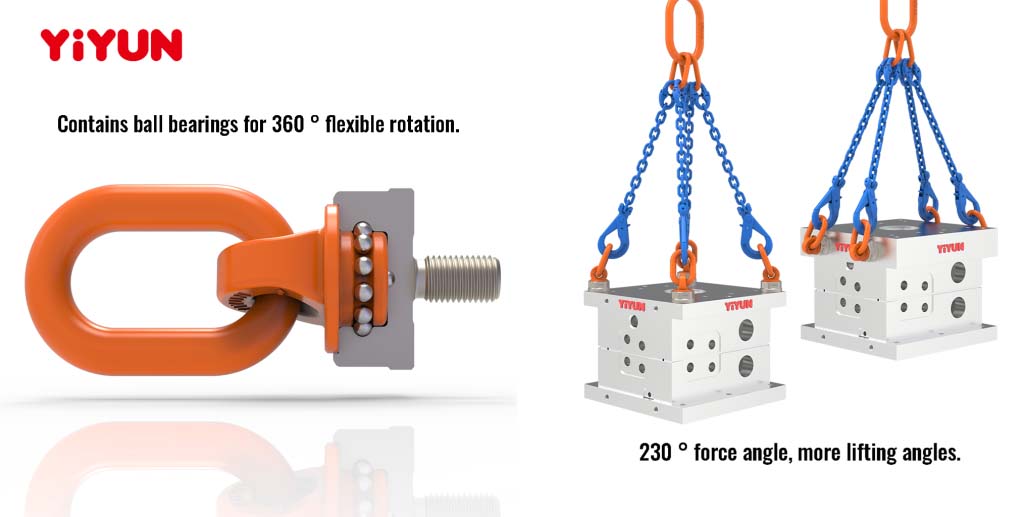

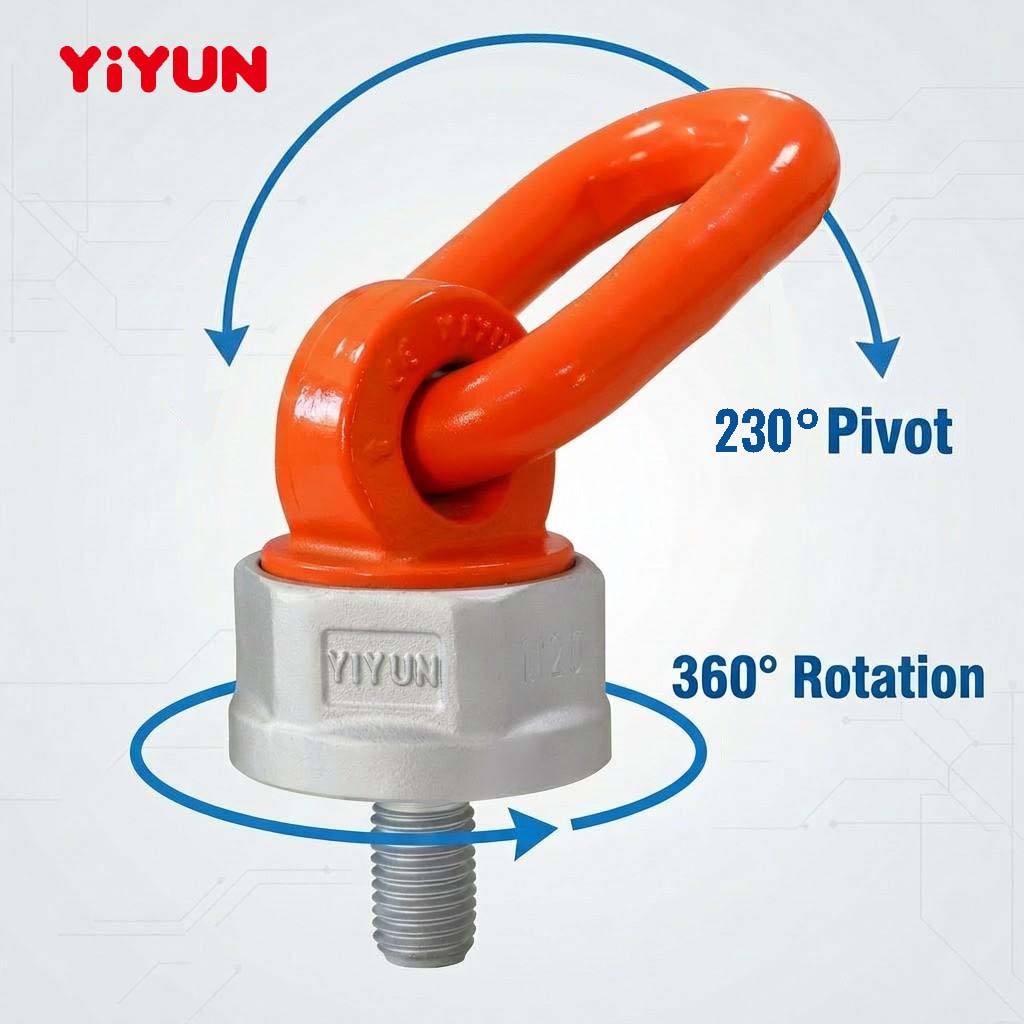

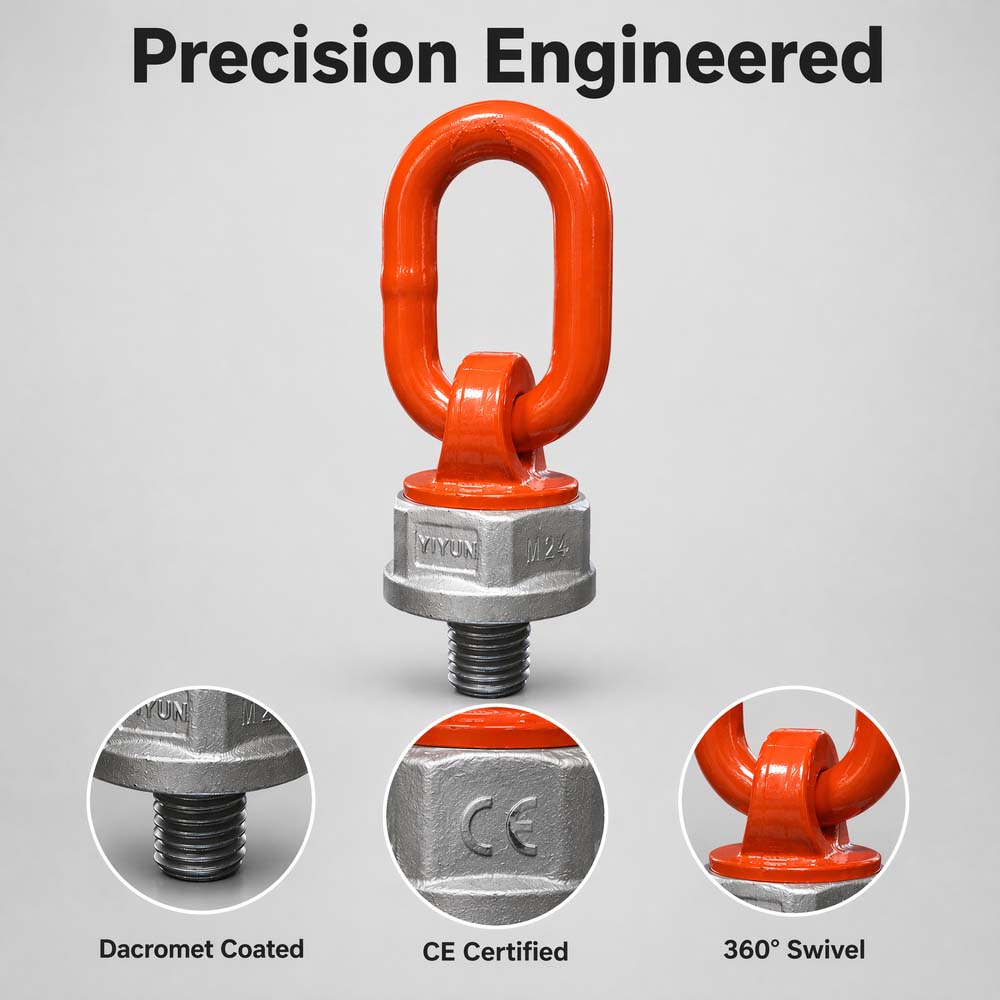

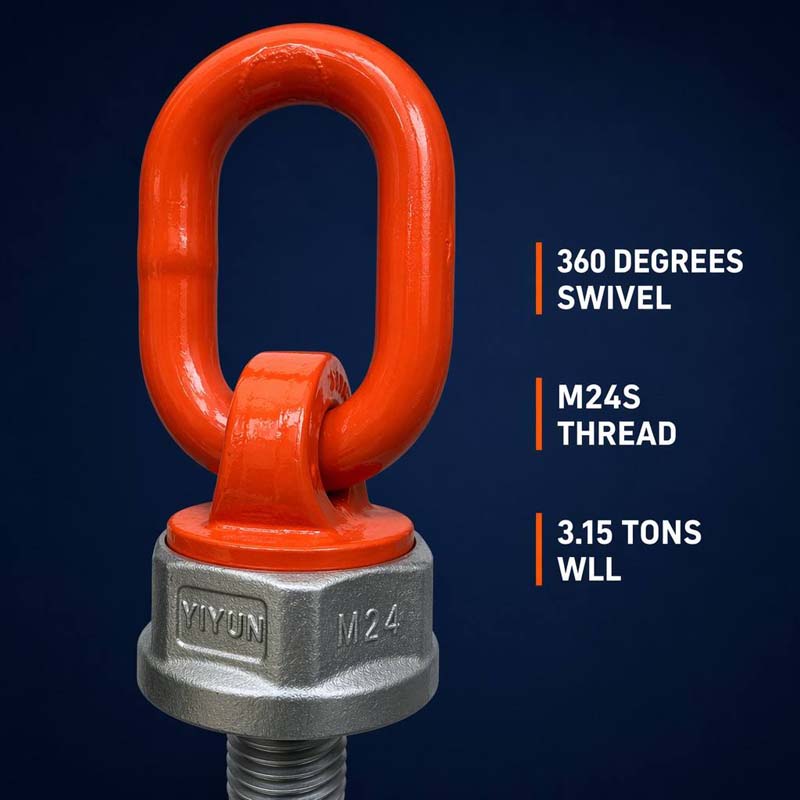

Rotation 360 degree Material: Alloy steel Safety Factor: 4:1 Range of load capacity: 0.4t-50t Surface treatment: Ring-Electrostatic coating, bolt- dacromet Standard Metric range: M6-M150 Thread alternate: UNC/UNF/RD and other OEM thread Standard: EN1677-1 Test: 2.5 times proof-load tested, with serial number for traceability.
4 times break load test
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
MPI test
Certificate: CE, ISO, DIN, CCS, SGS, MTC 3.1, ASME

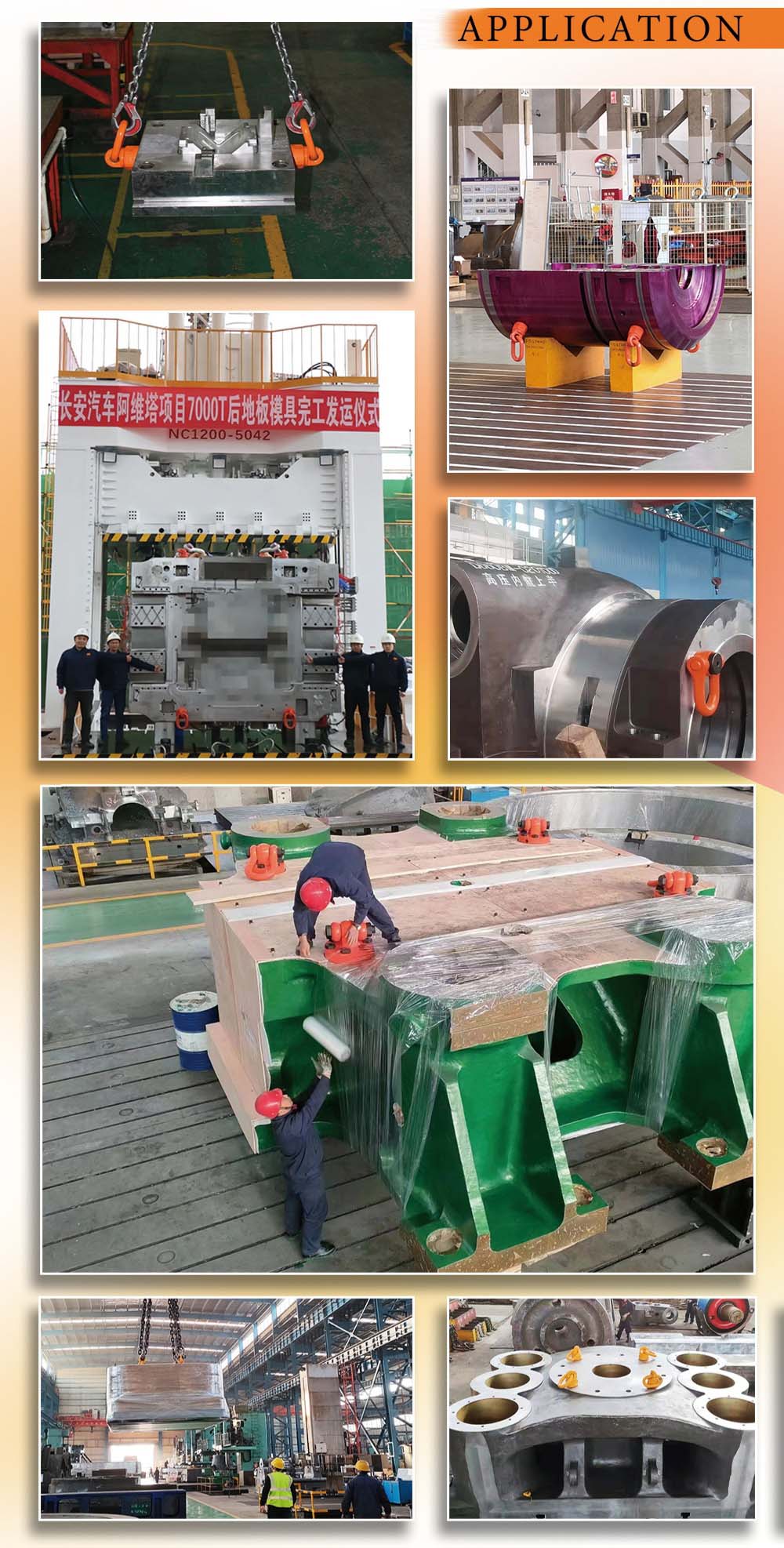

Application:

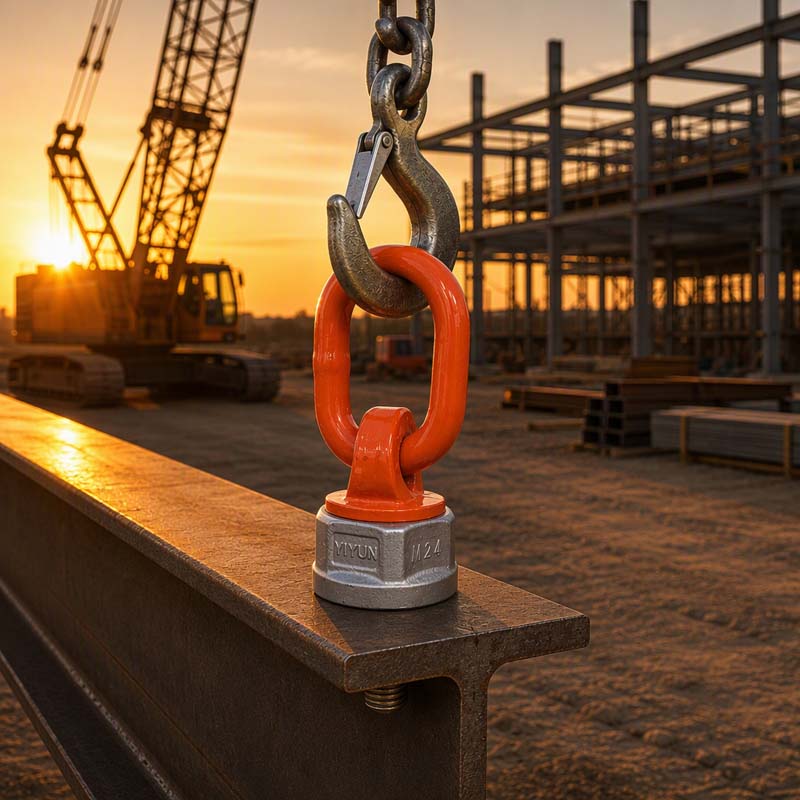

Engineered Heavy Lifting, Valve technology, Industrial Lashing

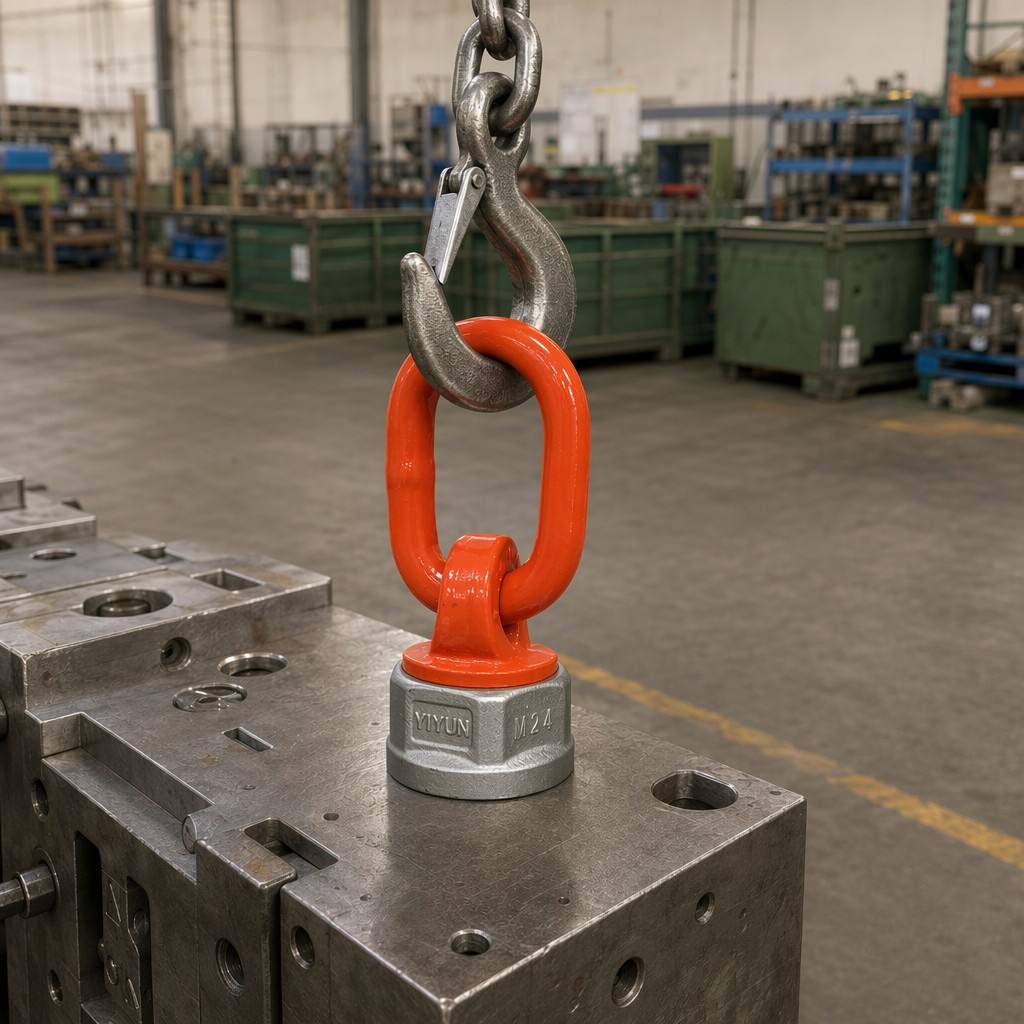

Mold & Die, Material Handling, Aerospace, Automotive, Construction, DOD/DOE, Electric Utility, Hydro, Manufacturing, Maritime, Mining, Nuclear, Pulp&paper, Railroad, Shipbuilding, Business Systems, Chemical, Dental, Nuclear, Oil, Gas, Petroleum, Solar, Wind energy, Electronic, Energy, Food, Marine, Medical, Military/Government, Processing.

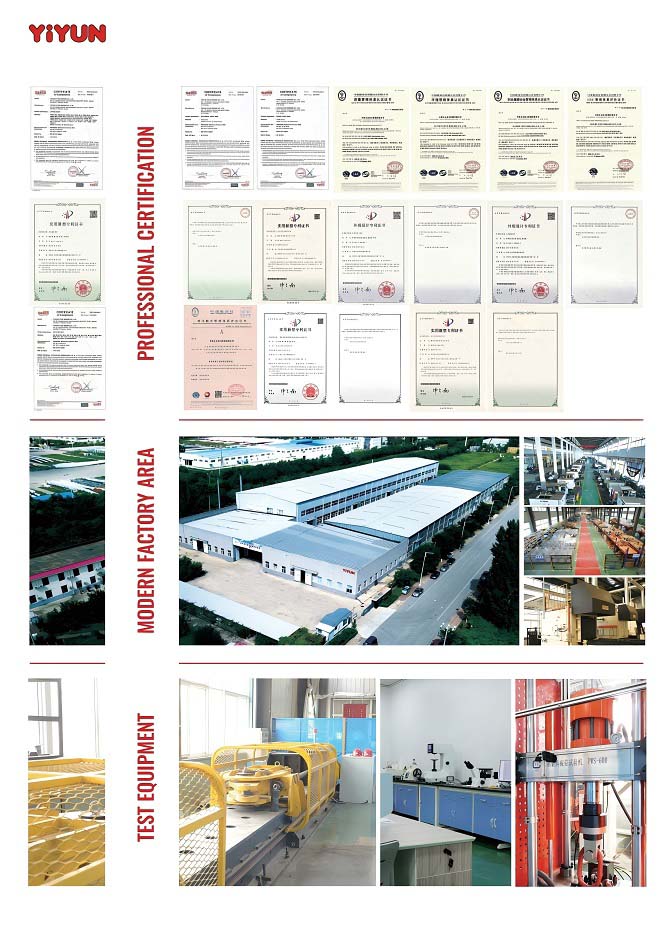

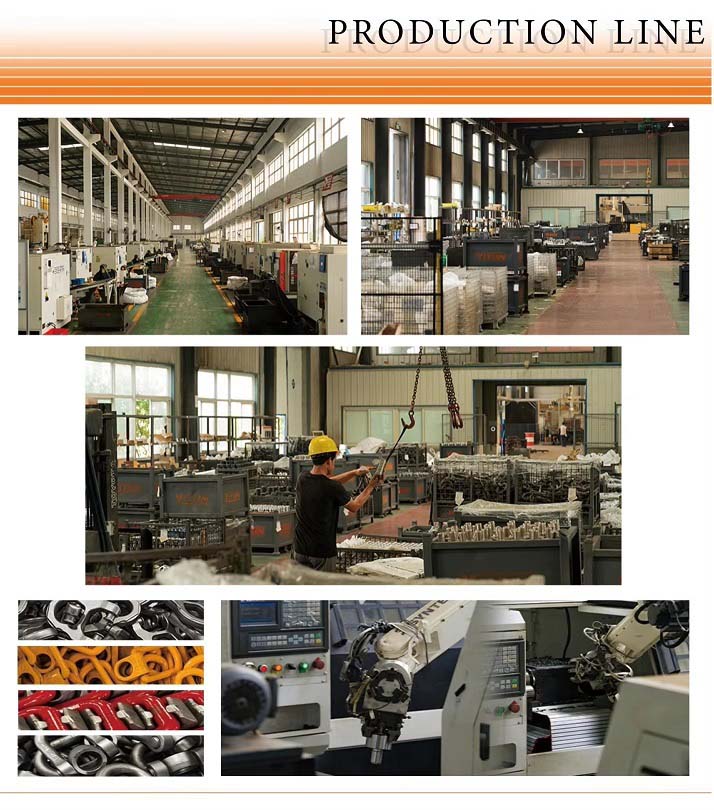

Our factory and certificate:
Tianjin Yiyun Rigging co.,ltd, is a new and high technology enterprise which has modern management level and ability of manufacturing G80 Rigging Hardware&Lifting Tools includes Swivel Hoist Rings,G80 Hooks,Turnbuckles.... As a leading Rigging Hardware &Hoist Rings manufacture in China, we are mainly manufacturing high-strength alloy steel lifting points and offers other lifting hardware and tools for the manufacturing, construction, concrete, trenching, and precast industries. From 2007, we acquired ISO9001, and then CE,SGS,CCS certification, we ensures all processes are well controlled and implemented per defined procedures so that to guarantee high level quality of products.
Our Lifting Points include Swivel Hoist Ring, Universal Rings, Side Pull Lifting Points,Weld-on Lifting Point, four styles of Angular Contact Bearing Swivel Rings, more than 10 varieties of series, more than 300 kinds of specifications,exporting to more than 15 countries; Magnetic Lifter and Electrical Hoists are also popular between South Korea and Russia. with our effort, a good reputation has been erecting among the majority of users at home and abroad; And with outstanding industrial advantages, we believed that we are the ideal place for foreign investment.
We sincerely welcome all of our friends to know more about us!
More Details:
Related Products

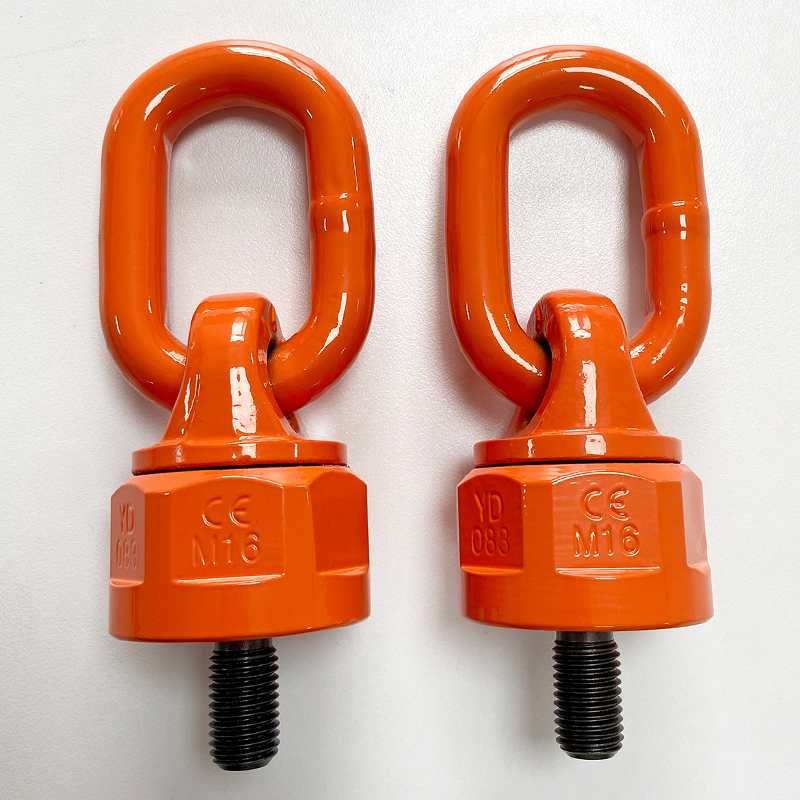

European standard swivel hoist ring factory sale free sample

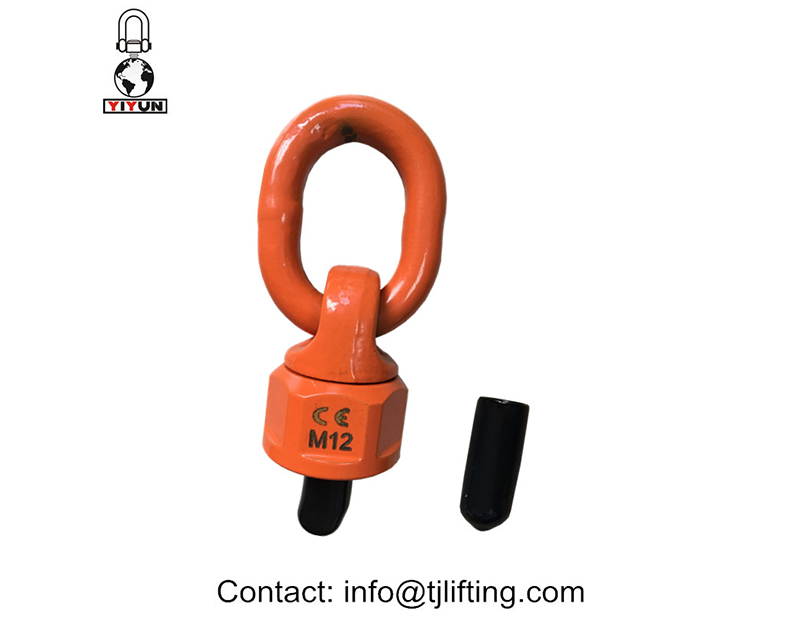

M12 METRIC SIZE tooling plates and accessories safety hoist ring
wholesale lifting point alibaba M12 triangle hoist rings for chain and hook
High Tensile Steel Alloy G80 universal swivel hoist ring WLL13T size M48

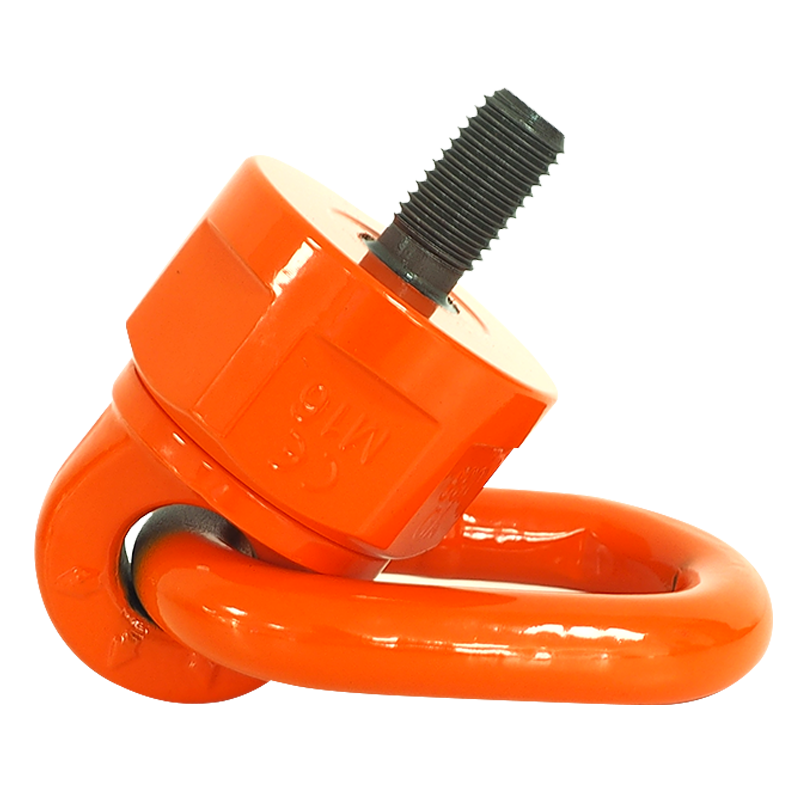

Lifting Equipment Rotating Lifting Point and Swivel Eye Bolts for Lifting

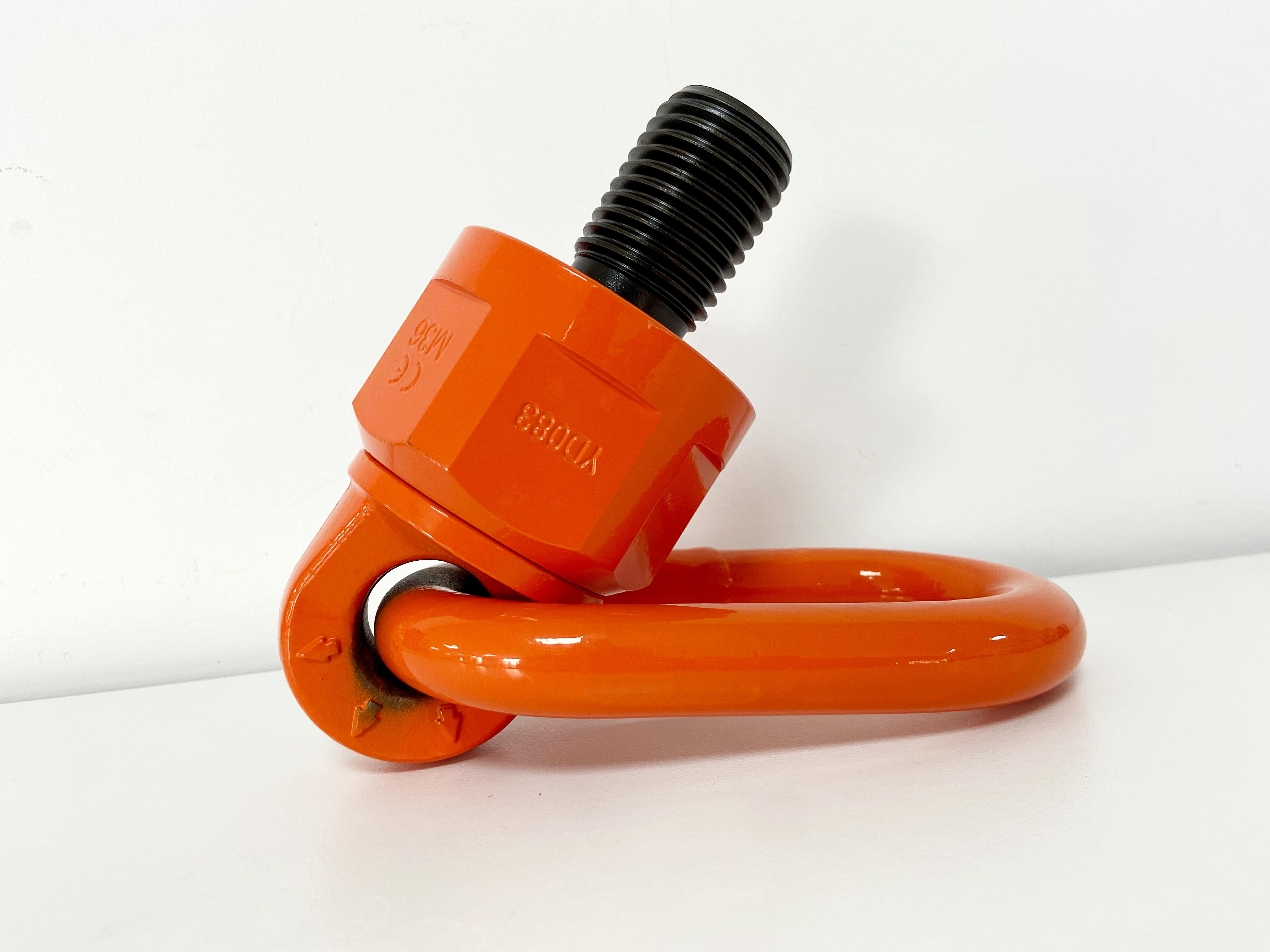

G80 swivel hoist ring/heavy duty swivel eye bolt for lifting with ce certificate
