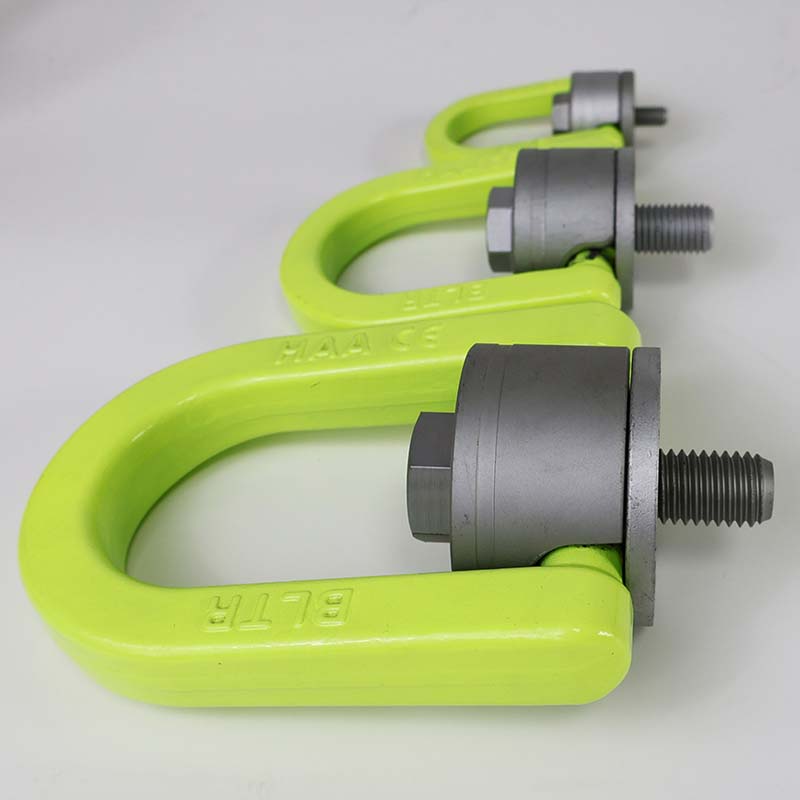

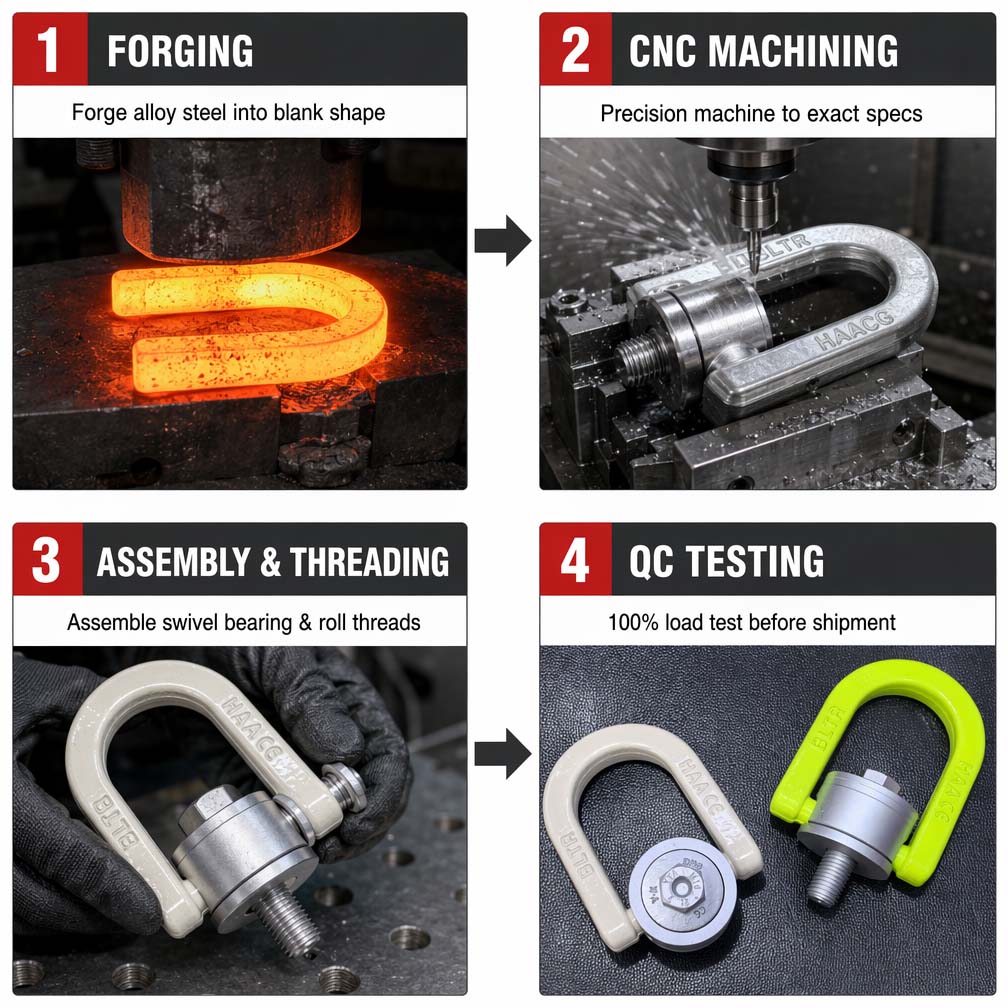

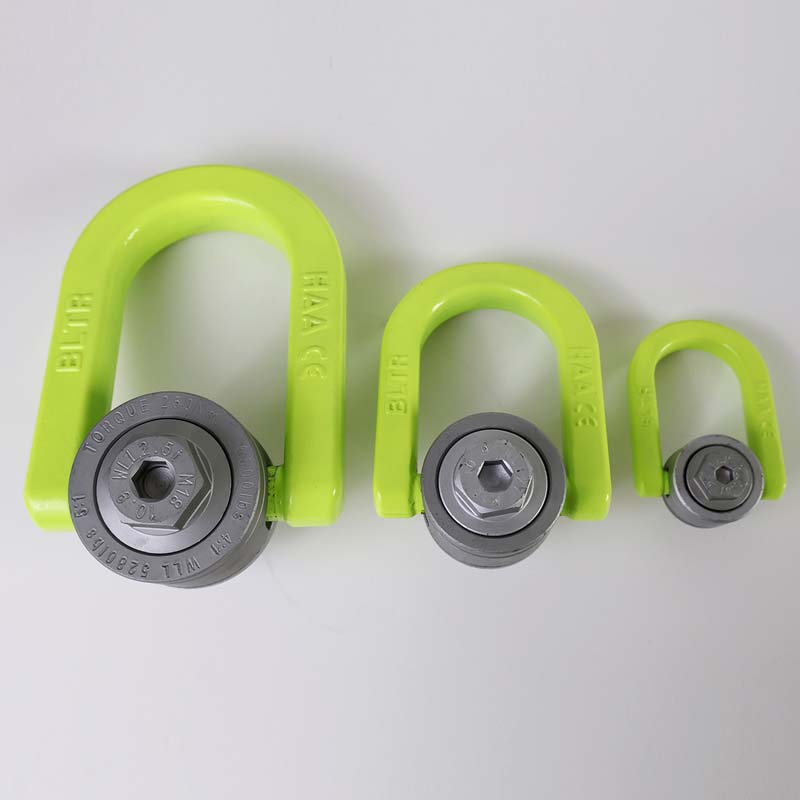

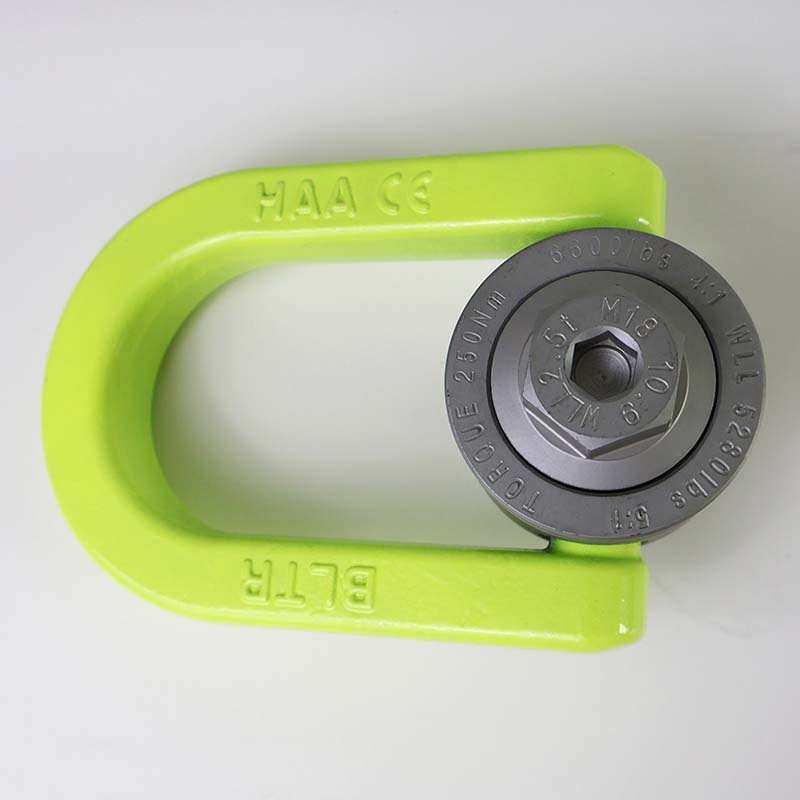

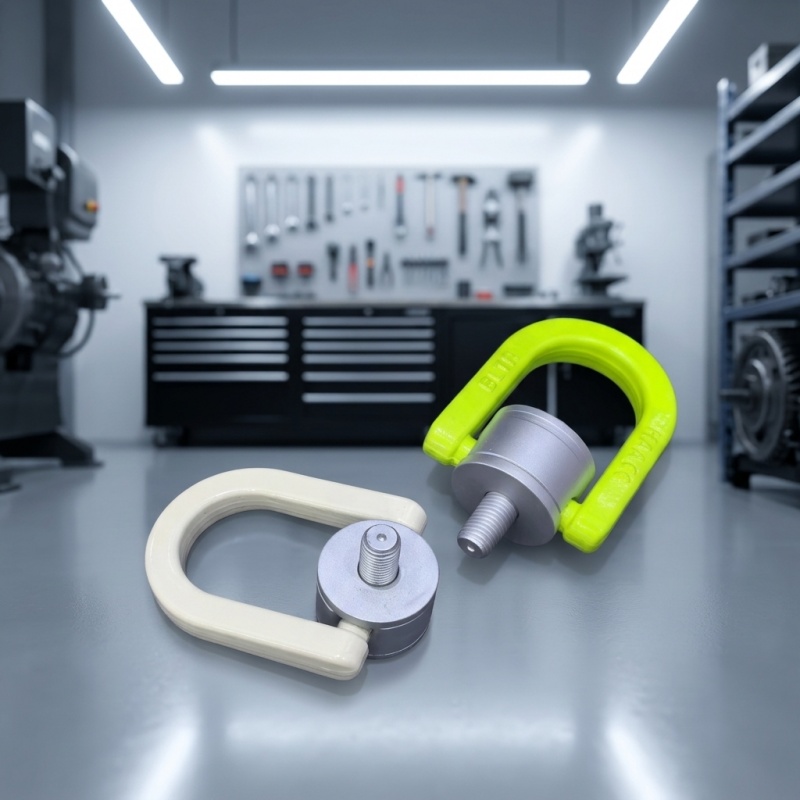

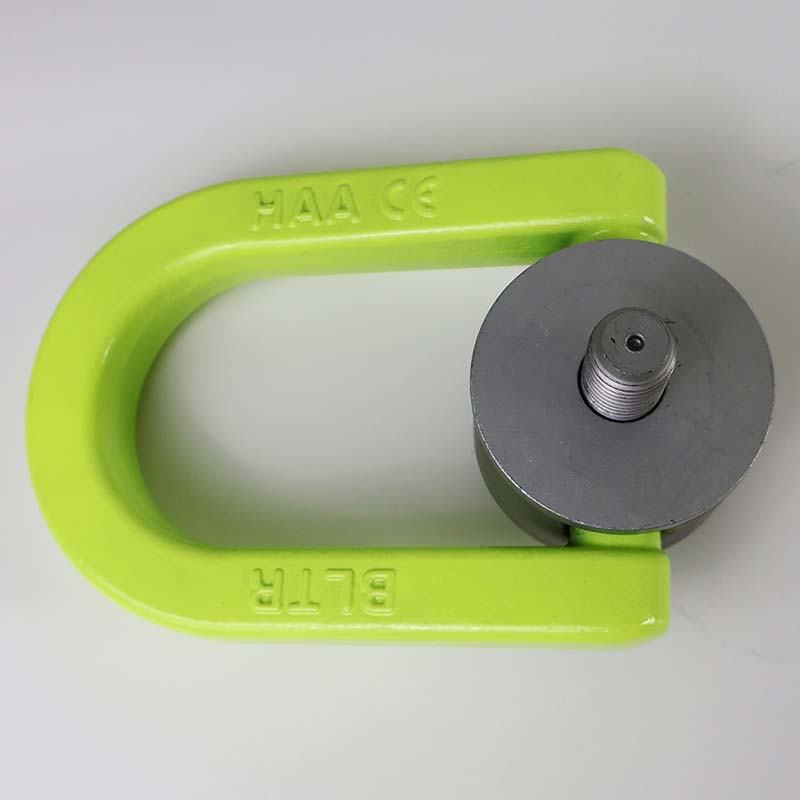

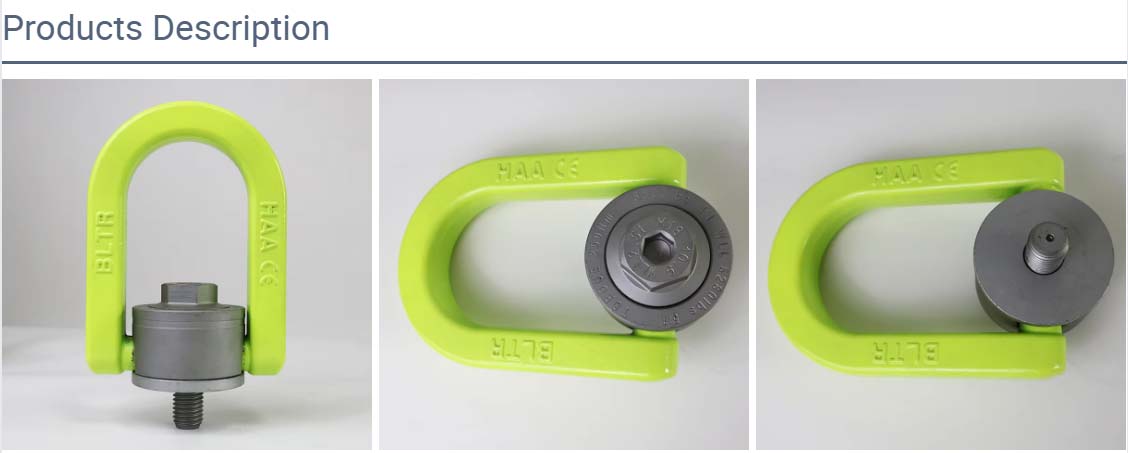

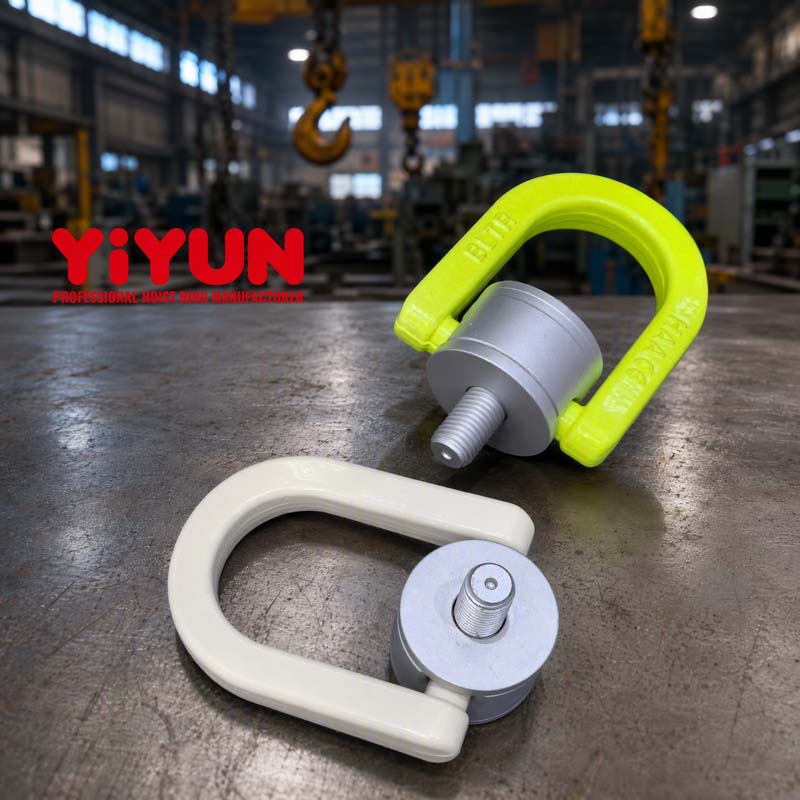

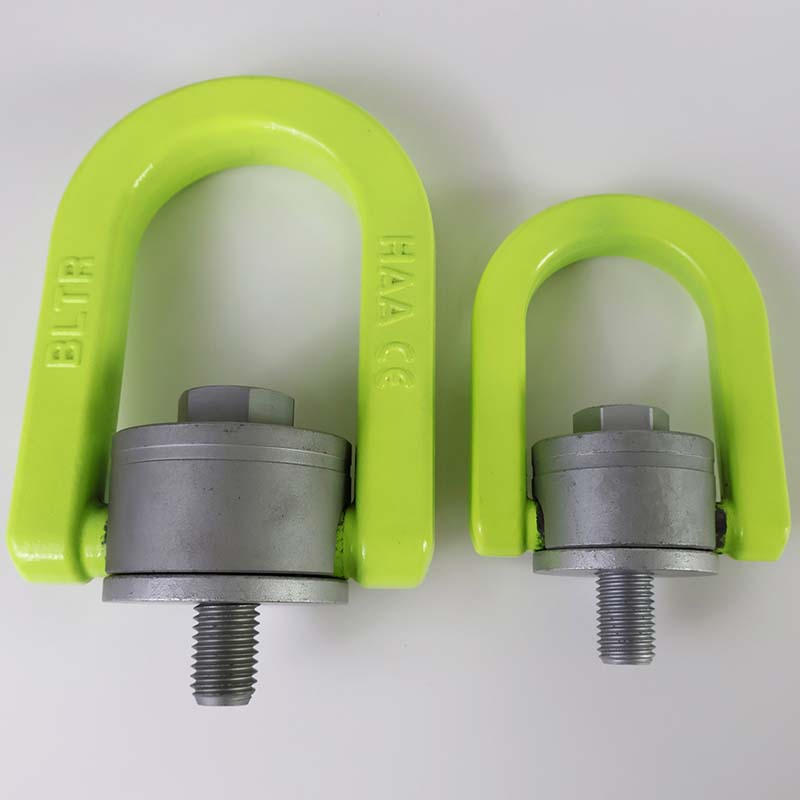

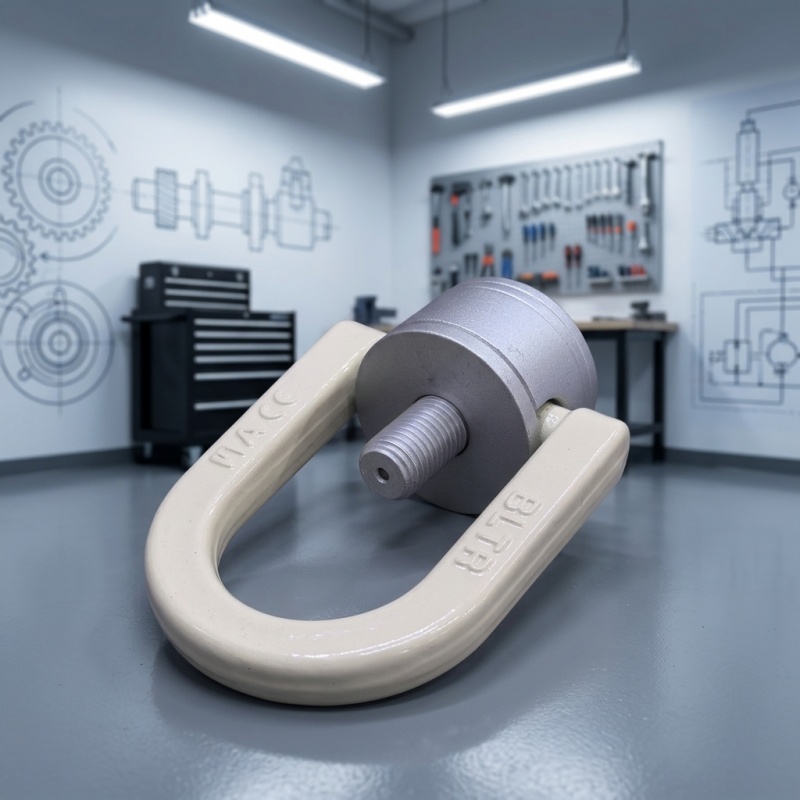

Lifting points are made of alloy steel precision forging, with a tensile strength greater than 1080Mpa after quenching and tempering. The surface of the lifting ring is electrostatic coating to improve its anti-corrosion ability.
After passing the inspection with a 6g go/no go gauge, it is suitable for precision threaded holes. Mark the WLL and thread diameter on the base of the lifting point.

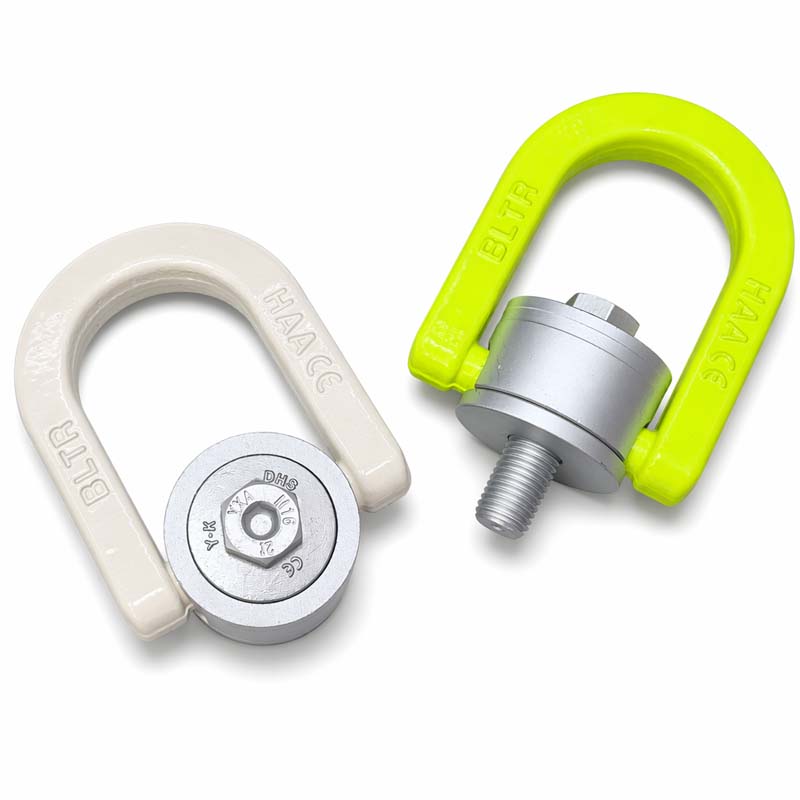

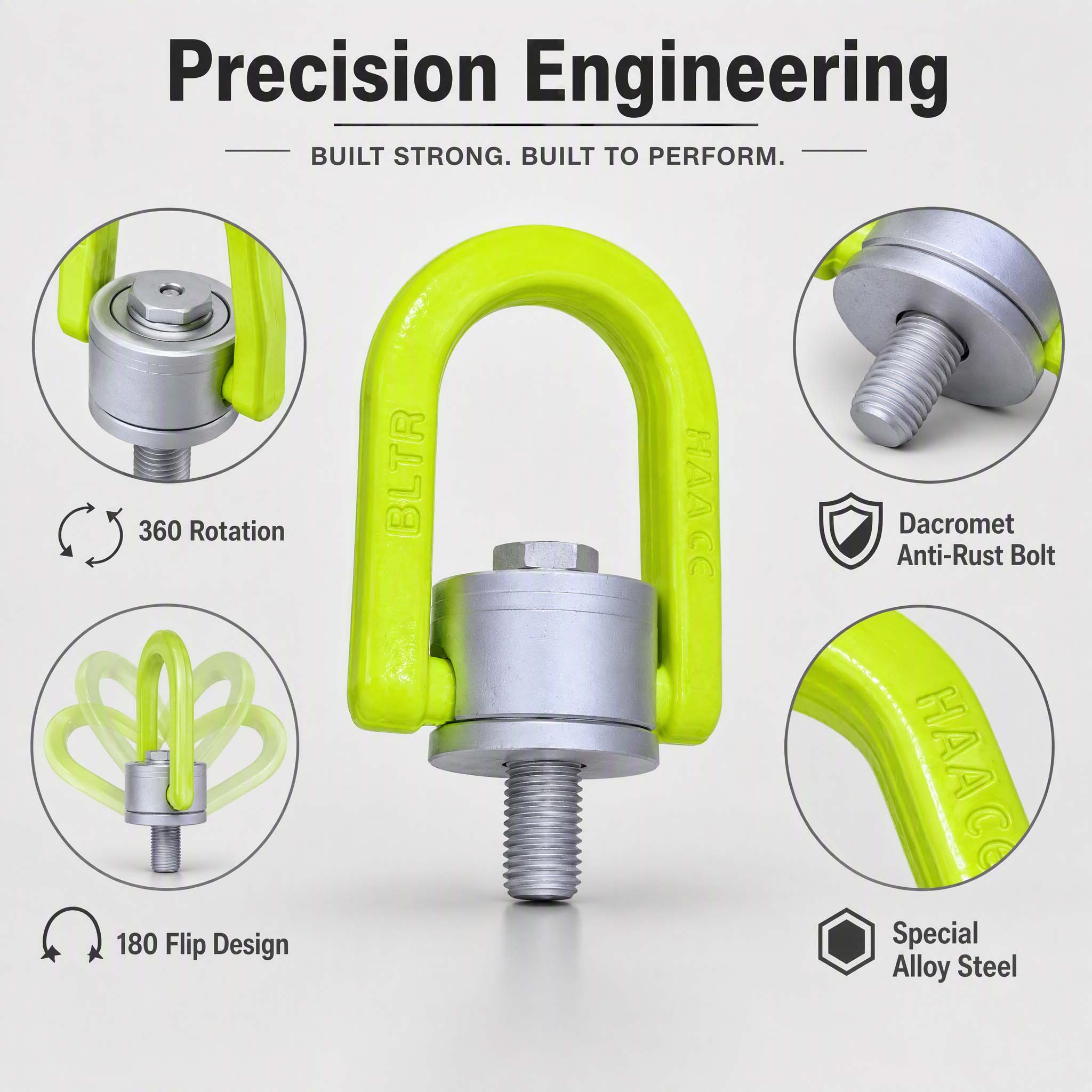

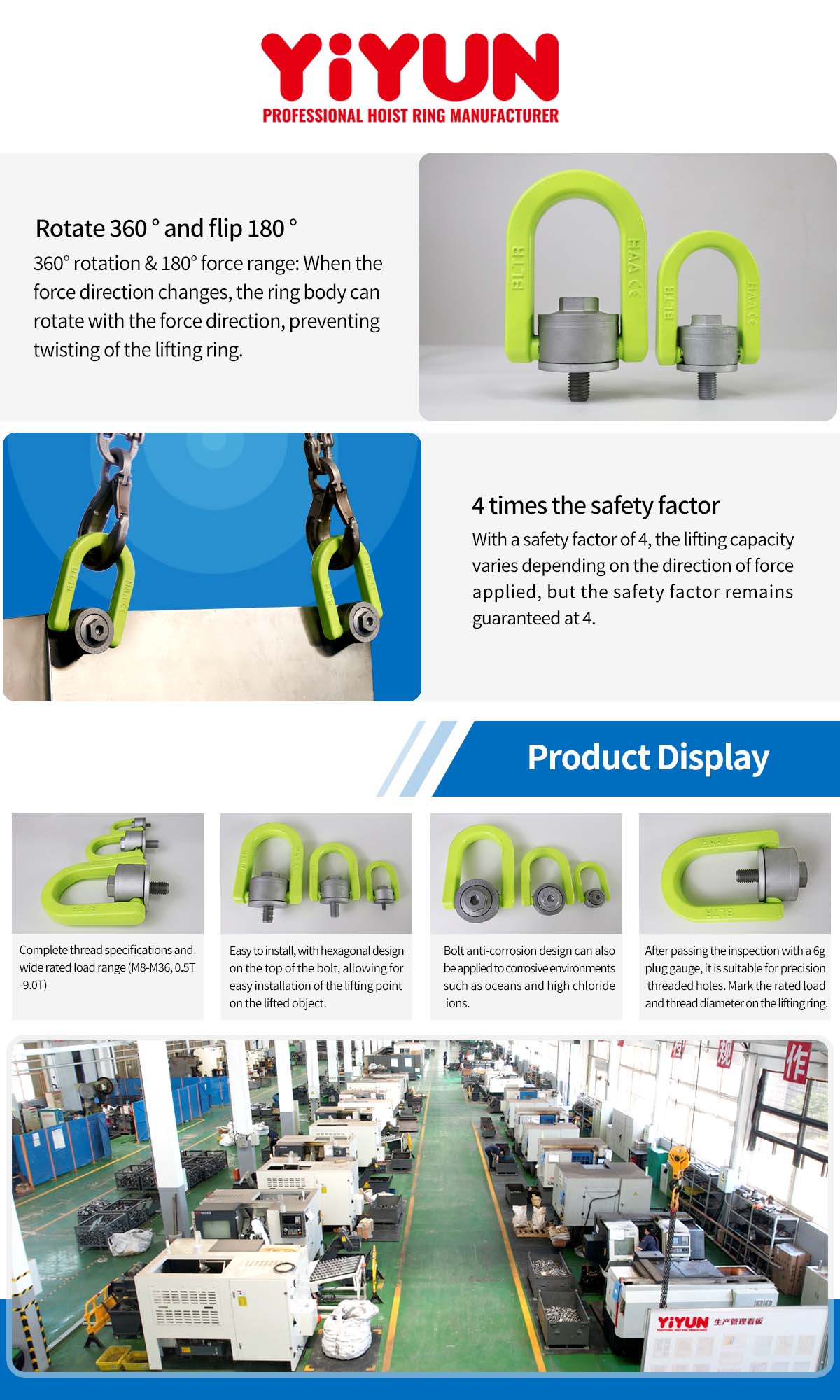

The internal space of the ring body is large and can be connected to various lifting tools and hooks. The ring body is equipped with a built-in positioning circlip device, making it more convenient to control any angle. The outer hexagonal+inner hexagonal design is convenient and fast for installation.
Equipped with a locking wrench, it is easy to install after locking, and the lifting ring can rotate after loosening.

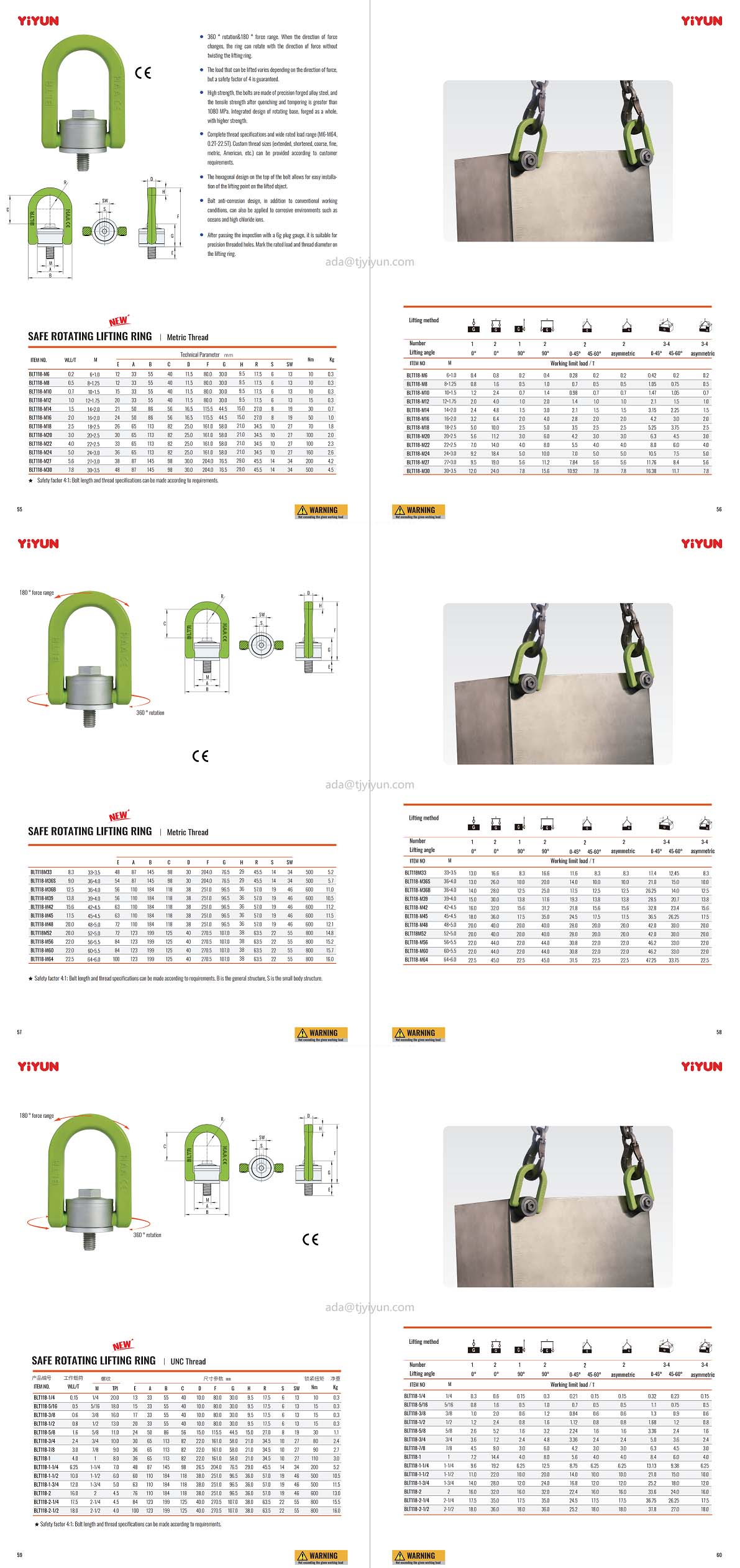

Specification:

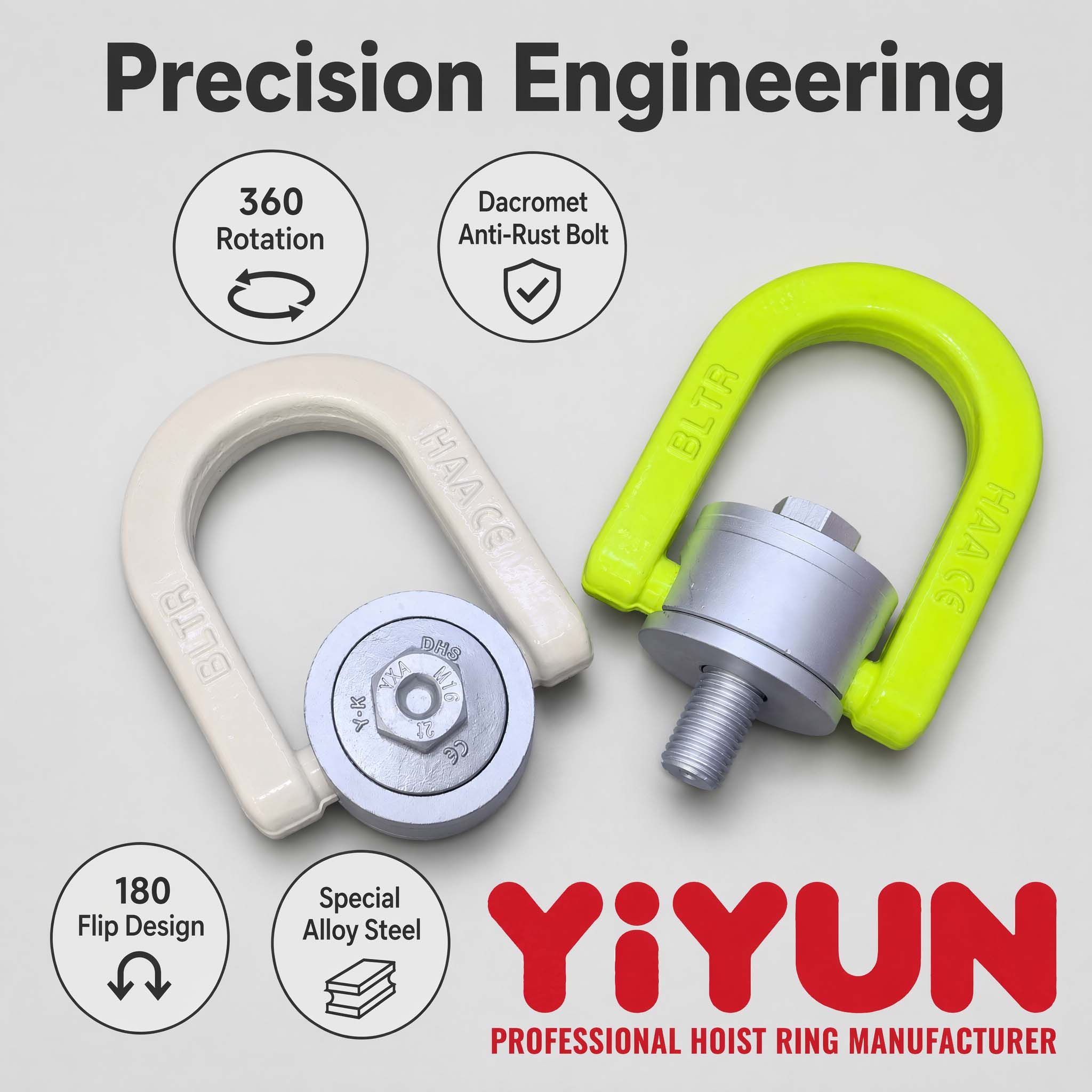

Rotation 360 degree Material: Alloy steel Safety Factor: 4:1 Range of load capacity: 0.2t-22.5t Surface treatment: Ring-Electrostatic coating, bolt- dacromet Standard Metric range: M6-M64 Thread alternate: UNC/UNF/RD and other OEM thread Standard: EN1677-1 Test: 2.5 times proof-load tested, with serial number for traceability.
4 times break load test
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
MPI test
Certificate: CE, ISO, DIN, CCS, SGS, MTC 3.1, ASME

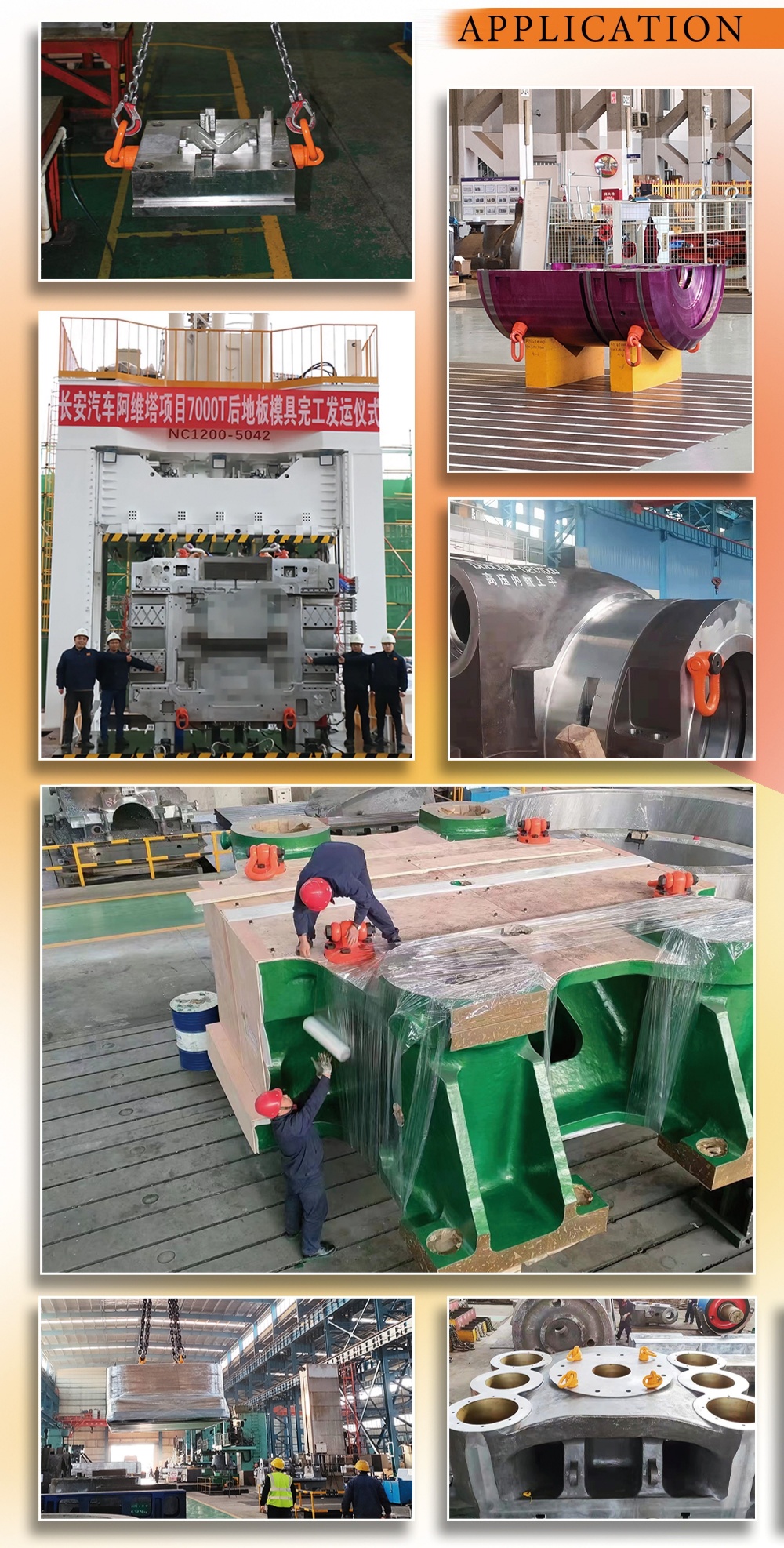

Application:
Engineered Heavy Lifting, Valve technology, Industrial Lashing
Mold & Die, Material Handling, Aerospace, Automotive, Construction, DOD/DOE, Electric Utility, Hydro, Manufacturing, Maritime, Mining, Nuclear, Pulp&paper, Railroad, Shipbuilding, Business Systems, Chemical, Dental, Nuclear, Oil, Gas, Petroleum, Solar, Wind energy, Electronic, Energy, Food, Marine, Medical, Military/Government, Processing.

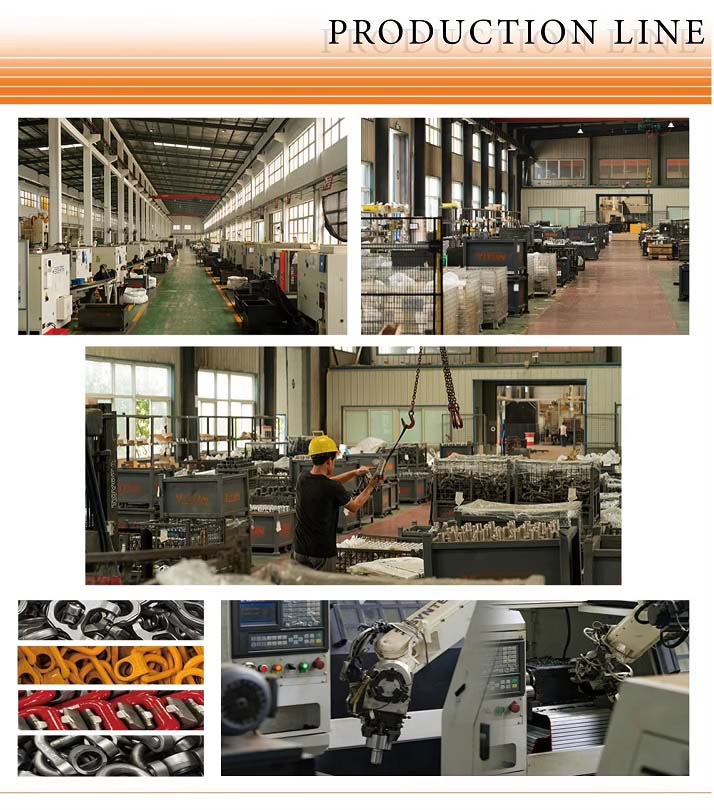

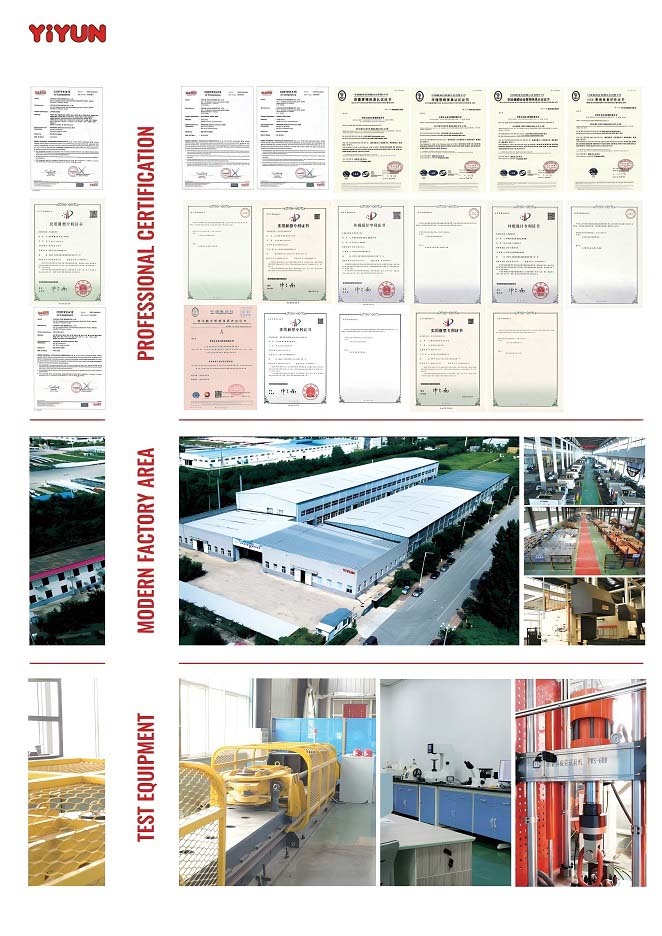

Our factory and certificate:
Tianjin Yiyun Rigging co.,ltd, is a new and high technology enterprise which has modern management level and ability of manufacturing G80 Rigging Hardware&Lifting Tools includes Swivel Hoist Rings,G80 Hooks,Turnbuckles.... As a leading Rigging Hardware &Hoist Rings manufacture in China, we are mainly manufacturing high-strength alloy steel lifting points and offers other lifting hardware and tools for the manufacturing, construction, concrete, trenching, and precast industries. From 2007, we acquired ISO9001, and then CE,SGS,CCS certification, we ensures all processes are well controlled and implemented per defined procedures so that to guarantee high level quality of products.
Our Lifting Points include Swivel Hoist Ring, Universal Rings, Side Pull Lifting Points,Weld-on Lifting Point, four styles of Angular Contact Bearing Swivel Rings, more than 10 varieties of series, more than 300 kinds of specifications,exporting to more than 15 countries; Magnetic Lifter and Electrical Hoists are also popular between South Korea and Russia. with our effort, a good reputation has been erecting among the majority of users at home and abroad; And with outstanding industrial advantages, we believed that we are the ideal place for foreign investment.
We sincerely welcome all of our friends to know more about us!
More Details:
Related Products

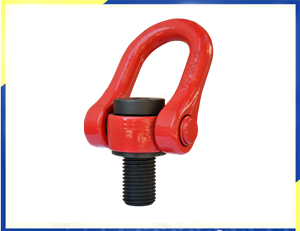

YDS Forged Universal Swivel Shackle Swivel Hoist Ring For Mining & Power Generation

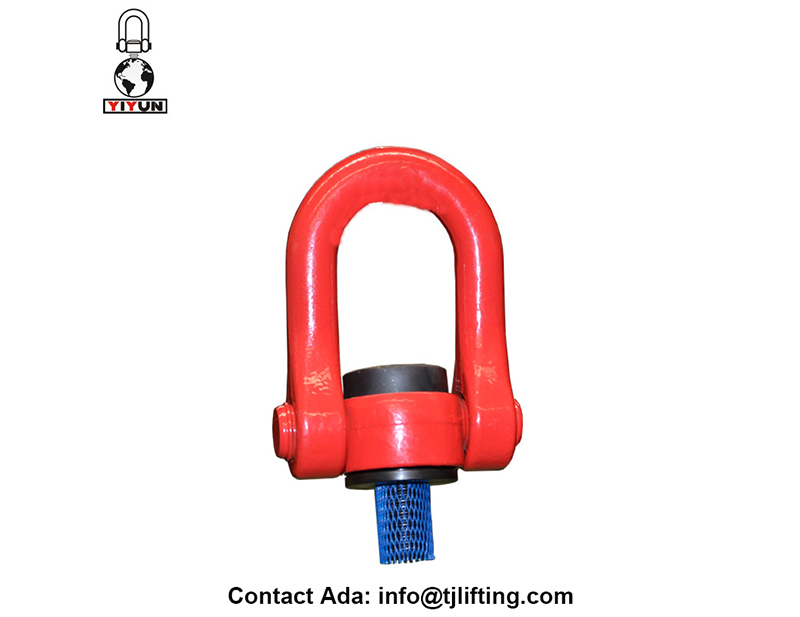

european lifting point honda jazz factory swivel hoist ring 7/16 inch UNC thread

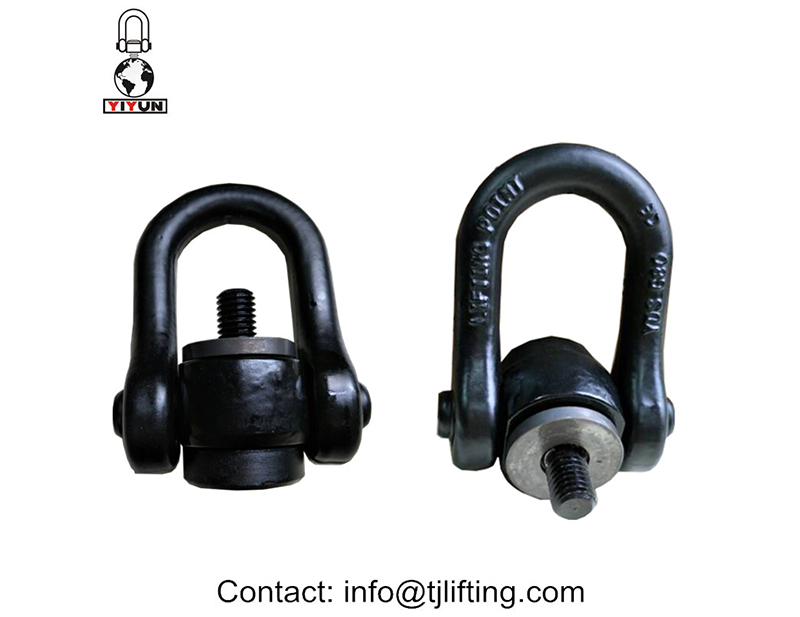

Lifting load china swivel eyebolts with high quality and low price form China factory

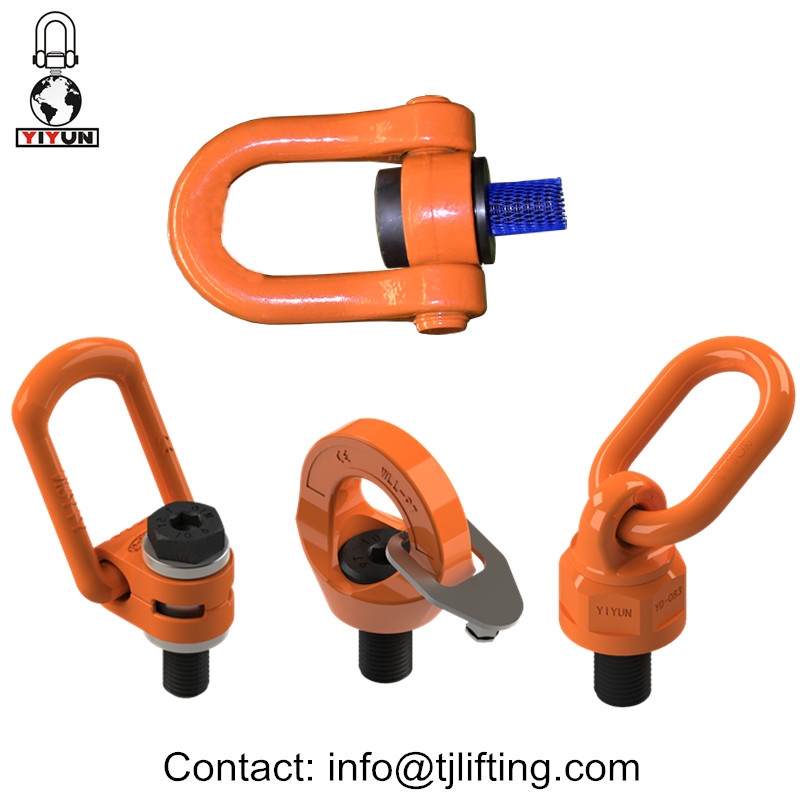

weldable lifting point eye alloy steel swivel eye bolt & grade 8 lifting eyebolts
wind generator lifting point equipment sling hoist ring

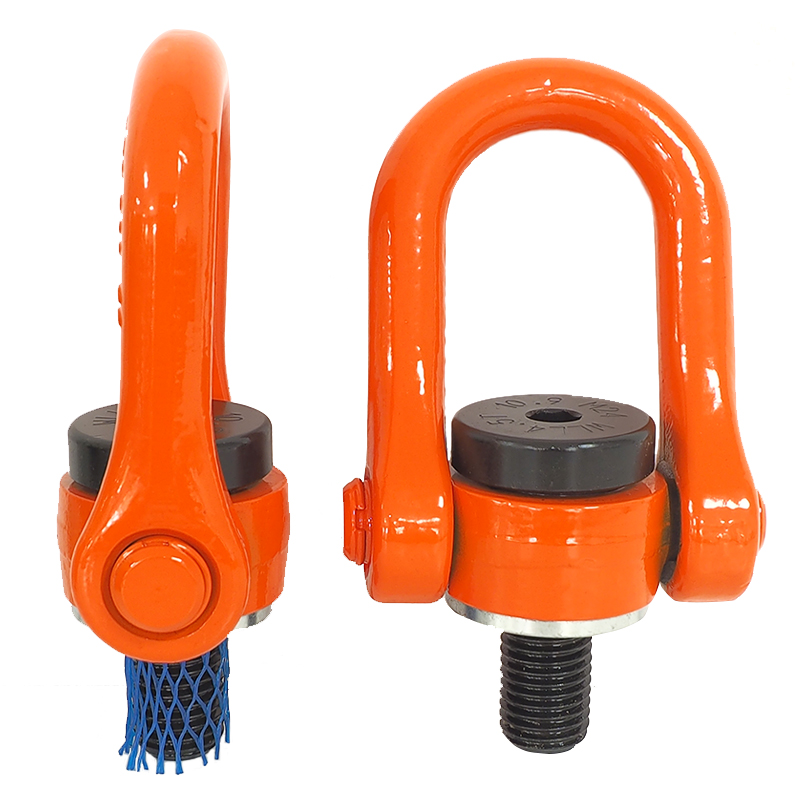

safety swivel hoist rings (imperial) linked fasteners lifting point
